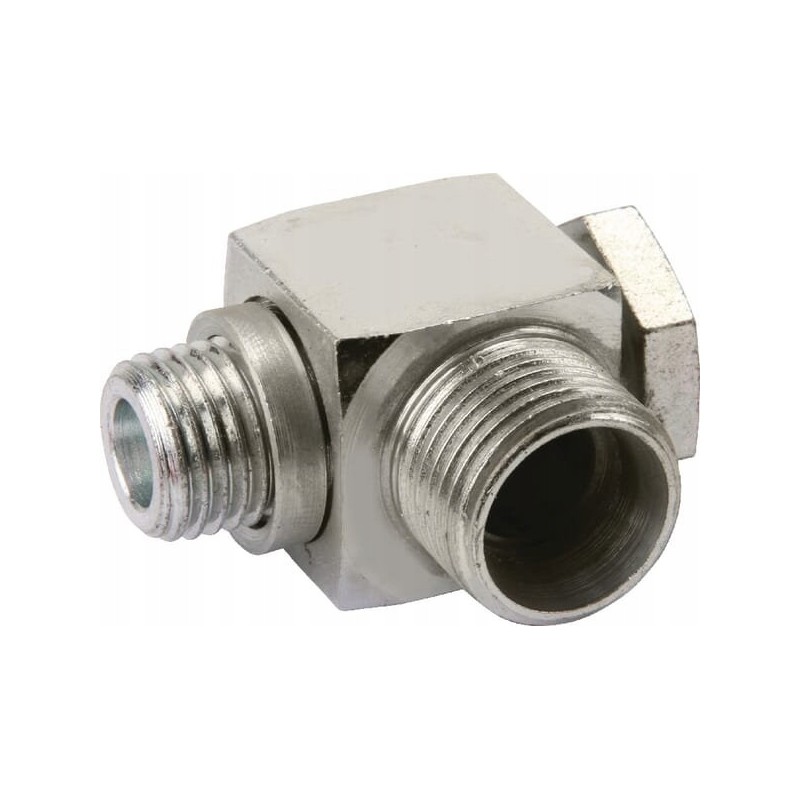

Banjo connector M18x1.5 - M18x1.5 12L Parameters

Part number: RSWS12LM18

Unit: piece

Manufacturer: Voss

Shape: Elbow - 2 sides connector

Connector type: Banjo

Connector type - male/female: Male

Connector thread diameter: M18

Connector no. 1 thread diameter: 18 mm

Connector Thread Length [L1]: 12 mm

Connector No. 1 Thread Pitch: 1.5 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 23 mm

Connector [S2] Wrench Size: 14 mm

Connector No. Type 2: Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Diameter: 12 mm

Connector No. 2 Length: 36 mm

Connector No. 2 Thread Diameter: M18

Connector No. 2 Thread Pitch: 1.5 mm

Thread type of connector no. 2: Metric

Wrench size for connector no. 2: 24 mm

Pipe diameter: 12 mm

ISO standard: 228

Angle: 90 °

Working pressure max.: 315 BAR

Seal material: Metal

Series: L

Max tightening torque: 100 N m

Application

- Hydraulic hose

- Hydraulic lines

Properties

- High corrosion resistance - Adjustable direction

- Setting the selected direction using the lock nut

Technical information

- Available on request in a stainless steel version Dimension from the axis of the joint to the end of the next joint 27mm

Dimension from the axis of joint no. 2 to the end of the next joint 18.5mm

DIN standard

- 2353

- 228

- 3852

- 2401

Internal diameter

- 8 mm

- 10 mm

Surface treatment

- Zinc

- Nickel plated
