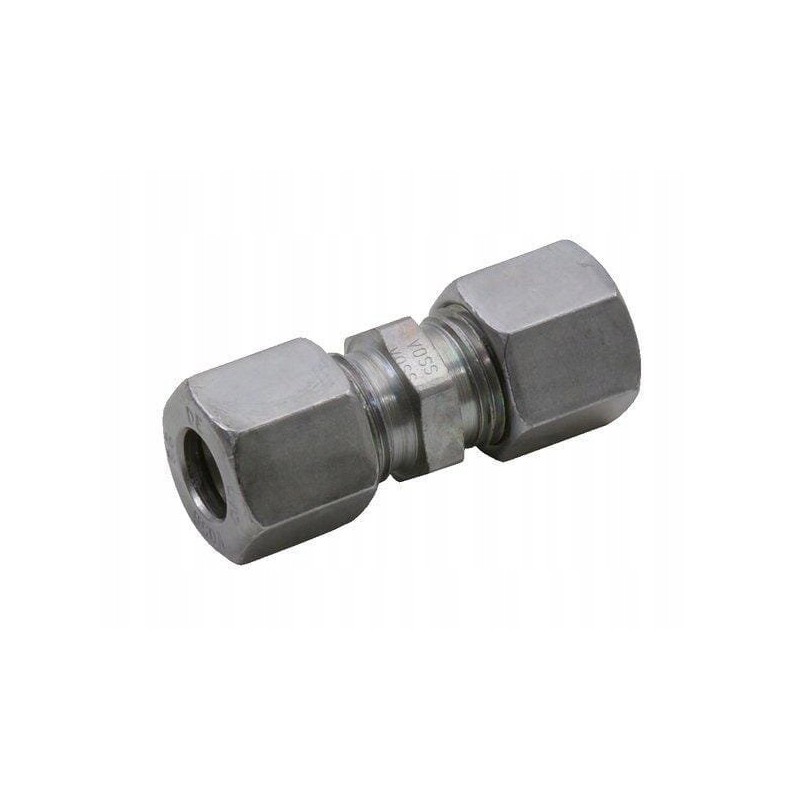

Straight connector with nuts m14x1 5 8l

Straight connector with nuts M14x1.5 8L Parameters

Part number: GV8L

Unit: Piece

Manufacturer: Voss

EAN: 8719607064811

Cone angle: 24 °

Shape: Straight - 2 sides of connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 8 mm

Connector No. 1 thread diameter: M14

Connector No. 1 thread pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 14.0 mm

Connector No. 2 Type: Cutting Ring

Connector Type No. 2 - male/female: Male

Connection no. 2 diameter: 8 mm

Connection no. 2 thread diameter: M14

Connector no. 2 thread pitch: 1.50 mm

Connection No. 2 Thread Type: Metric

Connection No. 2 Wrench Size: 17.0 mm

Connection Distance: 11 mm

Pipe diameter: 8 mm

Total length: 40 mm

Max working pressure: 500 BAR

Series: 8L

Specifications< p>

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimal connection with the cutting ring and perfect operation

- High corrosion resistance

DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel-plated
