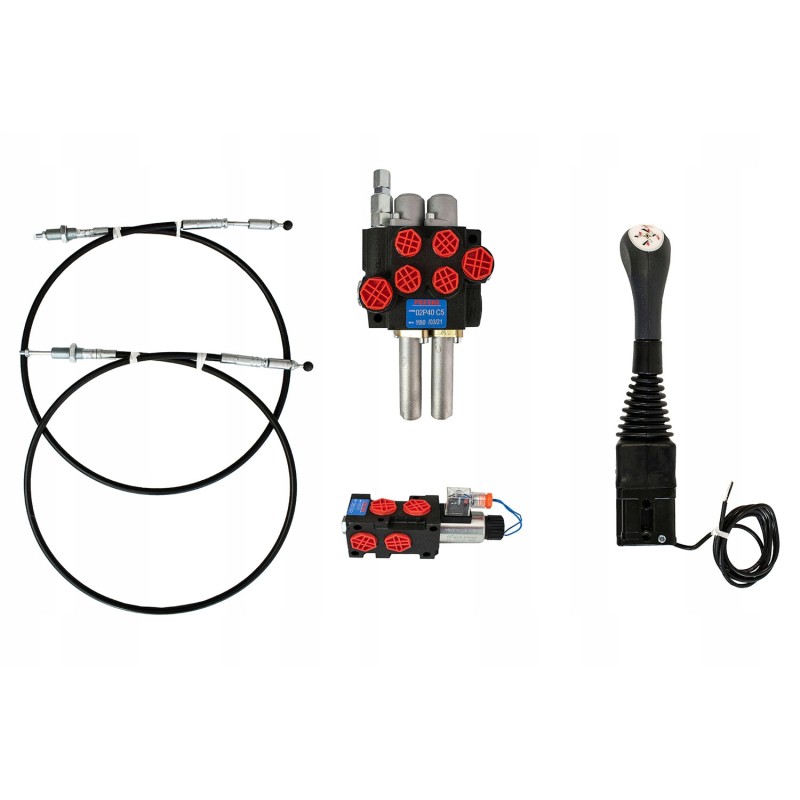

Set of 2 section turn joystick cable distributor

Hydraulic distributor (40l) by PRESKO

- set with cables and solenoid valve (12v, 50l).

The distributor is successfully used in agriculture, horticulture, construction and forestry.

It is used in many machines and vehicles with a hydraulic system. It allows you to connect a hydraulic system located outside the cabin with a joystick located in the cabin, making work comfortable and safe.

In a set with cables, a joystick and a solenoid valve used in hydraulic systems as an additional section - usually the third with a 2-section distributor.

Durable and proven design of the set, guarantees failure-free operation of the system for a long time.

Distributors very often used in TURACH and:

- Tractors

- HDS loaders

- Sweepers

- Excavators

- Cyclops

- Forklifts

- Sprayers

- Balers

- Agricultural machines and many others

Technical specification

Safety valve setting: 180 bar

Maximum pressure: 250 bar

Maximum flow: 40 l/min

Section spacing: 35 mm

Weight: 2 .76 kg

Number of sections: 2

Typical application: power hydraulics

Connection:

Pump power supply (P): thread internal BSP 1/2''

Return to the tank (T): internal thread BSP 1/2''

Outlet to sections: internal thread BSP 3/8''

Series connection (N): BSP 1/2' internal thread

Solenoid valve A high-quality PRESKO solenoid valve is used in hydraulic systems as an additional section - usually the third one in a 2-section manifold.

Can be responsible for controlling a crocodile or a gripper.

The solid construction of the solenoid valve guarantees long and trouble-free operation.

A solution common in TURACH.

TECHNICAL SPECIFICATION :

- Maximum oil flow - 50 l/min

- Threads (BSP) - 1/2'

- Voltage - 12 V

- Maximum pressure - 315 bar

- Maximum operating temperature -20 +70 °C

Two cables:

2 x 1.5m

durable protective armor

They are used to connect the distributor with a joystick with a ball systemPRESKO brand joystickJoystick with one button, adapted to control lines with balls ending

Durable construction made of high-quality materials

Enables precise control of devices such as a bucket, grapple or crocodile.

Perfect for TOURS, CYCLOPES, FORKLIFTS AND LOADERS

The safety mechanism used blocking the movement of the joystick head

Cable hole - diameter 14mm
