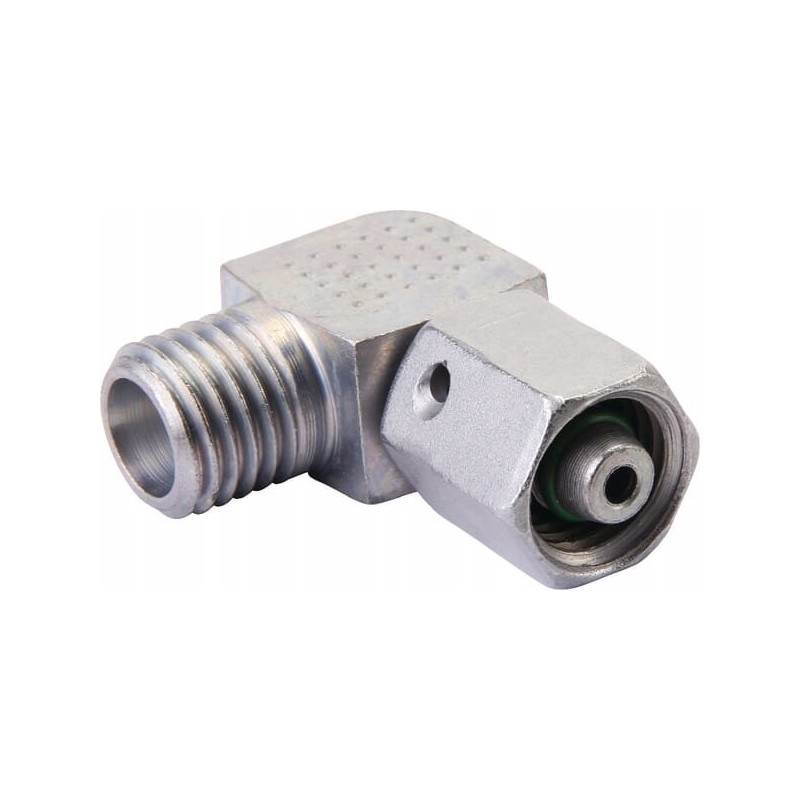

Adjustable elbow joint 16S Parameters

Part number: EWSD16S

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Elbow - 2 sides of connection

Connector type: Swivel nut

Connector type - male/female: Female

Connection diameter: 16 mm

Connector Thread Diameter: M24

Connector No. 1 Thread Pitch: 1.5 mm

Connector Thread Type: Metric

Connector Wrench Size: 24 mm

Connector No. 2 Type: Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connector No. 2 thread diameter: M24

Connector No. 2 thread pitch: 1.5 mm

Connector No. 2 thread type: Metric

Wrench size for connector No. 2: 30 mm

Pipe diameter: 16 mm

DIN standard: 2401

Length: 24.5 mm

Angle: 90 °

Working pressure max.: 630 BAR

Seal material on the pipe side: Viton

Series: S

L2: 43 mm

Installation size 4: 24 mm

Wrench width [S2]: 30 mm

Specifications

- Pre-assembled O-ring - For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint 36.5mm

Dimension from the axis of joint no. 2 to the end of the next joint 24.5mm

Internal diameter

- 12 mm

- 11 mm
