Complete cetop 5 control panel, hydraulic distributor

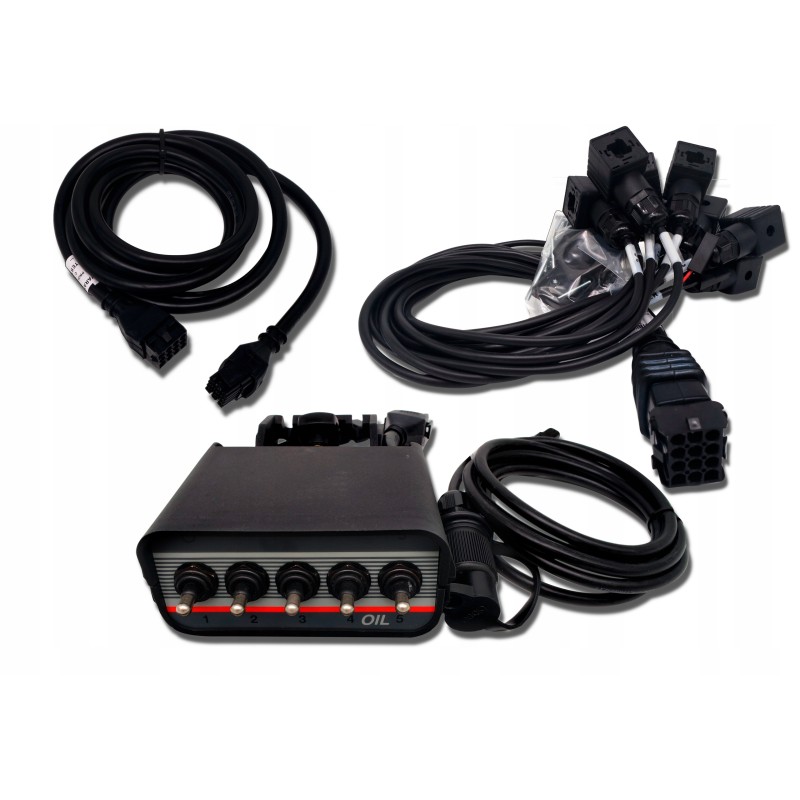

HYDRAULIC DISTRIBUTOR CONTROL PANEL WITH FIVE BUTTONS, CABLE HARNESS FOR THE HYDRAULIC DISTRIBUTOR, 3M EXTENSION CABLE AND POWER CABLE Manufacturer: Salvarani SKRAW-MET code: [7750]

The panel allows you to control five sections of the distributor using buttons hydraulic switch. Complete set included electrical cables needed to power the panel and connect it to the hydraulic distributor. Additionally, the set has a cable that extends the connection by 3 meters. In our other auctions you will find other accessories matching the set.

All top-bottom switches with automatic centering (1-0-2) without a latch.

The panel can be powered by 12 or 24V.

The package includes an English user manual with connection and electrical diagrams.

Technical specifications: Number of buttons: 5

Power supply: 12 /24V

Power cable length: 2 meters

Current consumption: max 10A

Operating temperature: -10℃ - +50℃

The panel has an original, installed fuse.

The power cord can be easily and safely connected and disconnected using the plug included in the set.

Electrical socket for the control panelThe socket enables easy power supply to the set, without the need to permanently connect cables.

The set can be 'plugged in' and 'unplugged' from the socket, which will result in turning the power supply on or off in the system.

Compatible with the power supply 12V and 24V, maximum current is 25A.

Wire harness with eleven plugs (for a panel with five buttons) on 12 pin Manufacturer: SalvaraniSKRAW-MET code: [3719]

Cable used for connecting a set consisting of a panel (5 buttons) with a hydraulic distributor Technical specifications: Power supply: 12/24V

Number of pins: 12

Total length of the bundle: 60 cm (600mm)

Operating temperature: -10℃ - +50℃

When pressing any panel button, the signal is also sent to the additional cable. It can be used, among others, for activating warning signals, starting section or switching on the pump via a relay.

EXTENSION CABLE (EXTENSION) FOR CETOP CONTROL PANEL - 3 METERS Manufacturer: SalvaraniSKRAW-MET code: [3710]

Cable used to extend a set consisting of a panel and cables connecting the set with a hydraulic distributor. Technical specifications: Power supply: 12/24V

Number of pins: 12

Length of the extension cable: 3 meters

Operating temperature: -10℃ - +50℃

Diagram of complete connection of the panel to the splitter (panel, extension cable and wires connecting to the splitter)
