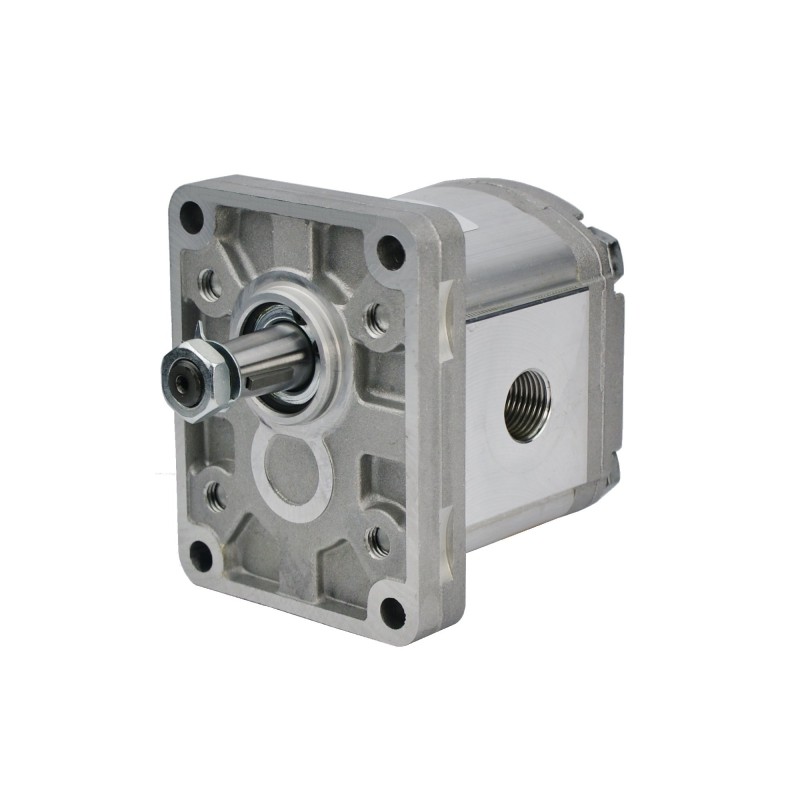

Hydraulic gear motor 14cm3 blue ascend

GEAR HYDRAULIC MOTOR 14cm3/RPM: 1:8 MAX RPM: 3500rpm Production:

Original product of the Blue Ascend Hydraulics brand, symbol: 2SM-A-140-R-EUR-WG-10, 1.37.30.014

Application:

NOTE: THE ENGINE LOOKS LIKE A PUMP BUT IT IS NOT A PUMP

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and the broadly understood industry.

14cm3 gear motor from group 2, intended mainly for operation in various types of agricultural and industrial equipment. Used in forklifts, agricultural machines, small loaders, industrial machines, belt conveyors, fans, mower drives, weeders, circular saws, etc.

Recommended use:

Wrappers, forage harvesters, spreaders< p>

Sweepers, gritters, snow blowers

Leaf and branch clearers

Conveyor drives

Chippers and branch shredders

Forest winches and vehicle winches

Orchard drilling rigs and drilling rigs

Travel drives

Drives for mowers and circular saws

Characteristics and advantages of gear motors produced by Blue Ascend Hydraulics:

roller bearings in the drive instead of plastic inserts

possibility of connecting in series and parallel

high starting torque and smooth operation just after start-up

high resistance to axial and radial forces

simple installation

low noise level

long service life even under difficult conditions of use< p>

Gear motors are one of the most popular groups of hydraulic motors. Very high revolutions, high pressure operation and compact design make the engines have a very wide range of applications. Used in systems where we want to achieve very high revolutions with a relatively low oil flow.

Technical data:

Rotation direction: double-sided

Internal threads in the body: BSP 1 /2'

Ports: side connection

Leakage in the back plate BSP 1/4' internal thread

Flange mounted with 4 holes fi 9mm

Spacing of mounting holes 71.5 x 96.2

Material: aluminum

Maximum parameters in continuous operation:

Maximum flow: 49 l/ min

Maximum rotation speed: 3500 rpm

Maximum pressure: 23 MPa

Maximum power: 20 kW

Maximum torque : 51 Nm

Oil types recommended by AGRICOLA:

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46< p>

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +80 C

Permissible oil temperature: -15 C to +80 C
