Ws12l elbow connector m18x1 5 12l

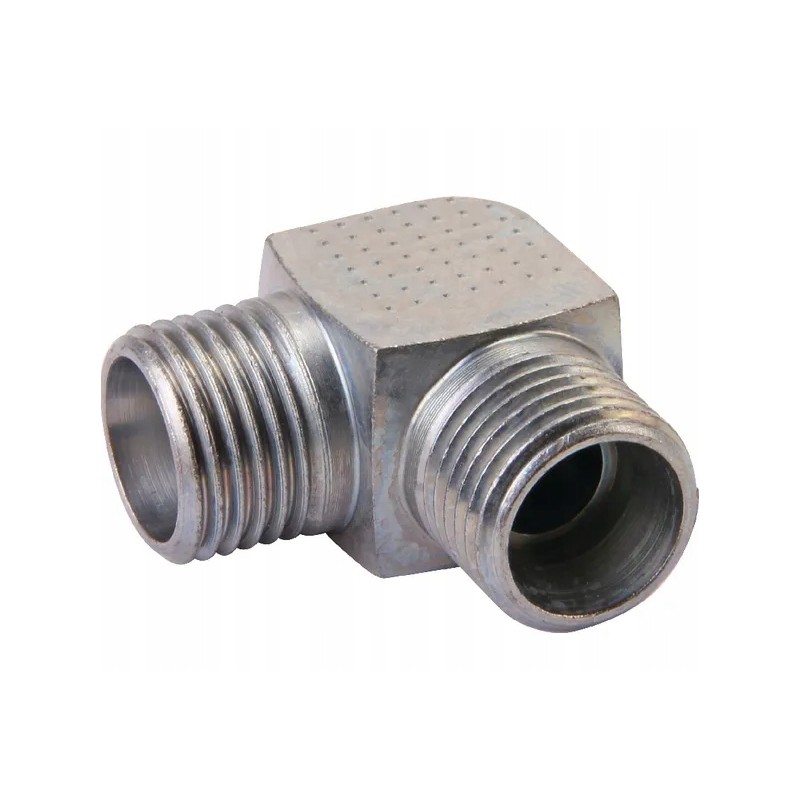

WS12L Elbow connector M18x1.5 12LEAN

8716106440542

Advantages

Limited risk of leakage

Product details

To direct connection to metric hose nut or pre-assembled connector

High corrosion resistance

Hydraulic hoses

Hydraulic pipes

Shape

Elbow - 2 sides of connection

Connection type no. 1 - male/female

Female

Connection diameter

12 mm

Thread diameter of connector no. 1

M18

Thread pitch of connector no. 1

1.50 mm

Thread type connectors

Metric

Connector #1 key size

22.0 mm

Connector #2 type - male/female

Female

Connection no. 2 diameter

12 mm

Connector no. 2 length

17 mm

Thread diameter of connection no. 2

M18

Thread pitch of connection no. 2

1.50 mm

Thread type of connection no. 2

Metric

Wrench size for connector #2

22.0 mm

Dimension from the axis of the connector to the end of the next connector

17 mm

24 mm

Pipe diameter

12 mm

DIN standard

2353

2401

Inner diameter

12 mm

Body height

19 mm

Angle

90 °

Surface treatment

Zinc

Nickel-plated

Max working pressure

400 BAR

Series

L
