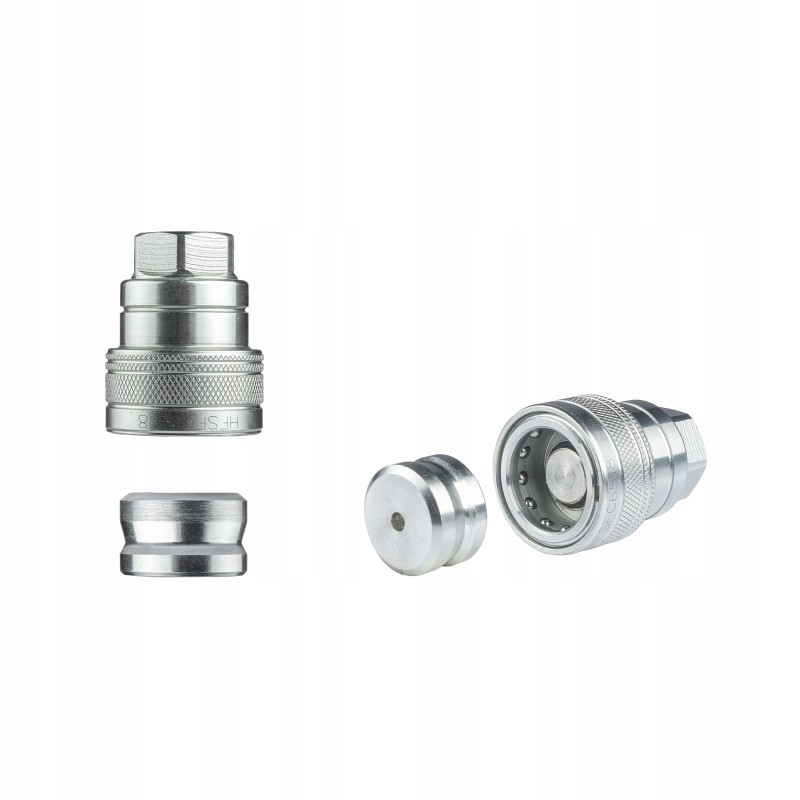

Brake quick connector, M18x1 5 hydrolider socket

QUICK BRAKE COUPLING SOCKET INTERNAL THREAD M18x1.5 Production:

Original product of the Hydrolider brand, symbol: 2.00.03.2.590

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Quick connectors are used for quick connection and disconnecting individual hydraulic lines, without the risk of leaks or dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor. Used in hydraulic braking systems, e.g.: trailer brake connector

Helpful data:

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

Technical data:

Type of quick connector: old type, screwed, ISO standard

Type of quick connector: socket

Maximum operating pressure: 15 MPa

Operating temperature: -20 C to 100 C

Weight: 0.398 kg

Type of liquid: hydraulic oil

Material:

galvanized steel
