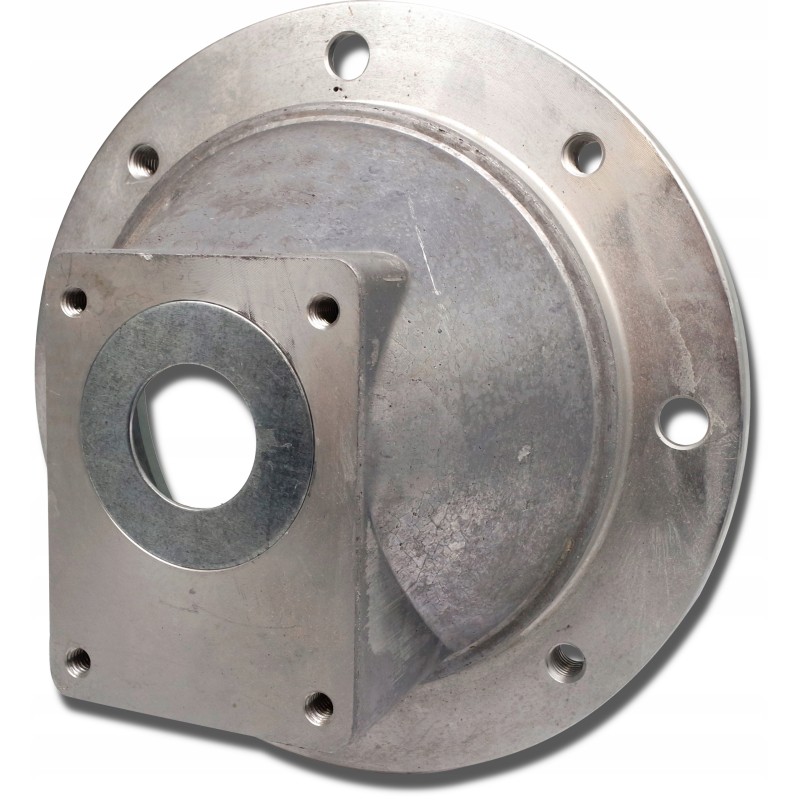

Bell connector ls252 pump gr2 engine 2 2 4kw

OMT LS252 Flange Group 2 Pumps for D100 and D112 Electric Motors 2.2-4kW [1173]

Suitable for use on Electric Motors with a D100 or D112 frame and with a Group 2 gear pump with a 4-bolt European or cone flange 1 /8'Flanges are mechanical elements used to connect an electric motor to a hydraulic pump.

These housings enable perfect installation of electric motors with a standard B5 flange and most 4 screw European hydraulic pumps available on the world market.

Material: Aluminum

SYMBOL: LS252Technical Specifications: 4 x M12 threaded holes with a diameter of 215 mm on the motor side

4 x M8 threaded holes with a diameter of 71.5 mm on the pump side

A [mm] - 250

B [mm] - 215

C [mm] - 180

D [mm ] - 14

F [mm] - 185

G [mm] - 105

H [mm] - 21

P [mm] - M12

Q [mm] - 118

R [mm] - 86

S [mm] - 43

Operating temperature from -30ºC to 80ºC
