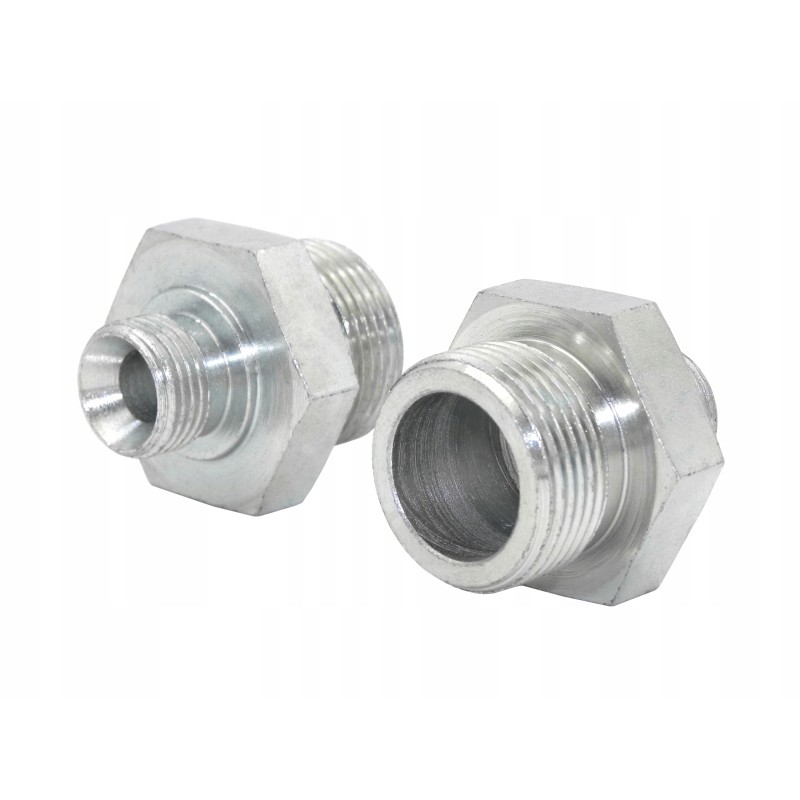

Hydraulic connection nipple M33x2 BSP 1 2

HYDRAULIC CONNECTION NYPEL M33x2 - BSP 1/2'' Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Hydraulic connection screwed into the body of e.g. pump, cylinder, distributor, etc. Connects the main hydraulic system components with hydraulic conduits.

The side intended for screwing into the body additionally requires the use of a washer.

The other side is intended for screwing in the conduit, elbow or other connector. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is not required at this point. The connection is intended only for screwing into the body and is not suitable for connecting two wires. For this purpose, we use connectors that can be purchased at our other auctions.

Technical data:

Thread on the body side: external metric 33x2

Thread on the other side: external inch BSP 1/2''

Nominal pressure: 180bar

Maximum pressure: 230bar

Type of liquid: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
