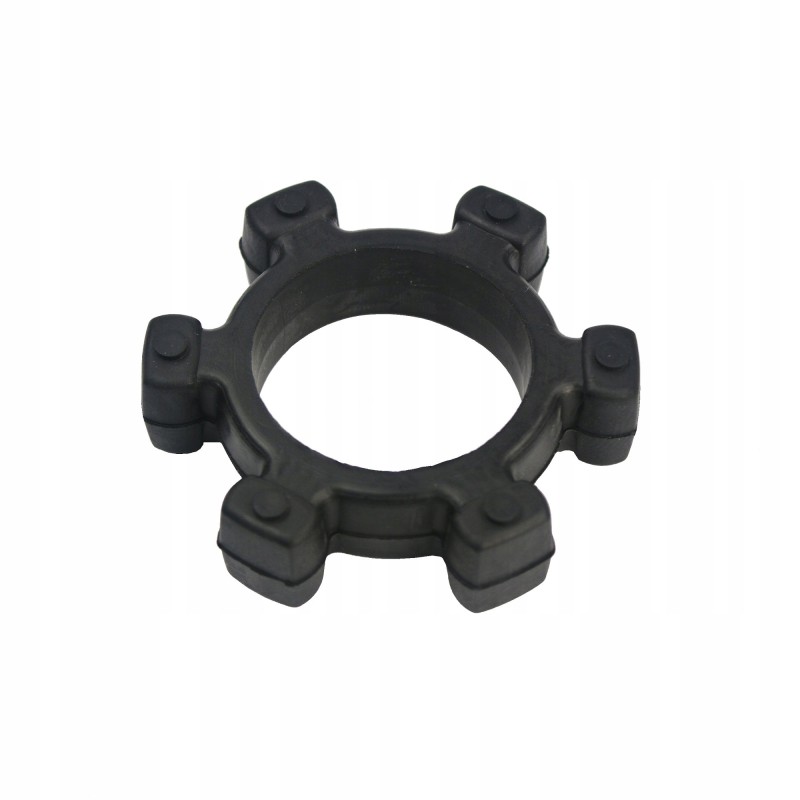

Flexible rubber element of the claw clutch g100 112

FLEXIBLE ELEMENT OF THE CLOCK COUPLING Production:

Original product of the Hydrolider brand, symbol: 1.42.01.105

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The claw clutch is one of the elements enabling the connection of a hydraulic pump with a 1- or 3-phase electric motor with a B35 type body. Directly transfers power from the engine to the pump. The clutch is mounted and stabilized inside the bell connector.

Diameter of the flexible element: 55 mm

Material: durable rubber resistant to cracking and crushing, with a low abrasion coefficient.

Integration:

The flexible element fits couplings working with electric motors of mechanical size G100 and G112 , among others for such clutches (photo):

GR2 G100-112 2.2-5.5kW W:28

GR3 G100-112 2.2-5.5kW W:28

Example application:

using a dog clutch when connecting a hydraulic pump for a 3-phase electric motor (photo):
