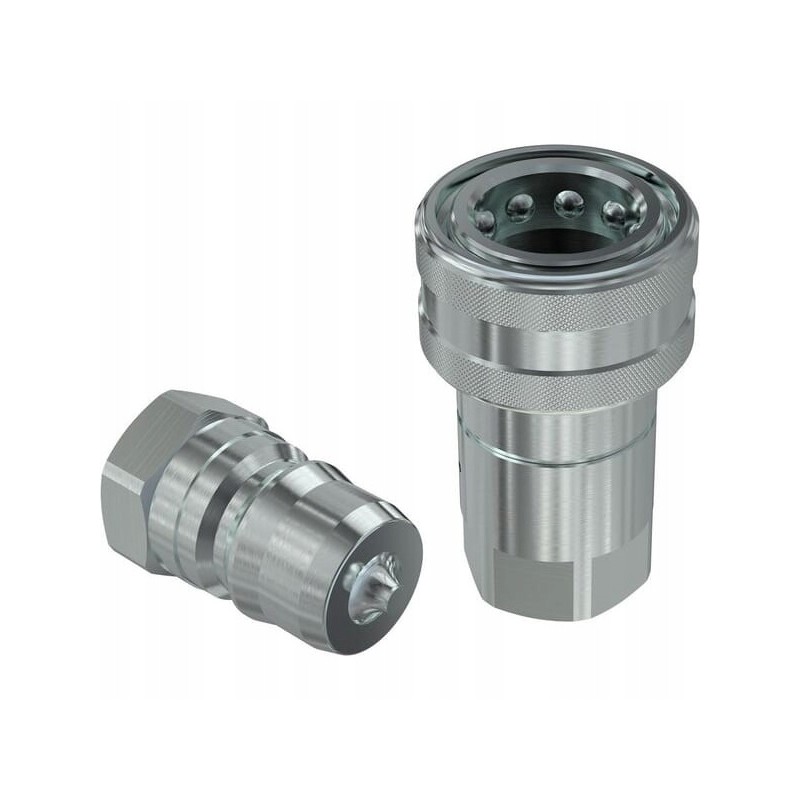

Quick connector 3 8 unf ig

Quick connector 3/8 UNF IG INDEX: HNV3838SAEF

Material: Carbon steel

Features: - Higher flow than standard couplings - Axial rearward actuation of the locking sleeve (single-acting) - With shut-off on both sides - Induction hardening in places exposed to rapid wear - No break-off function

Valve type: Poppet shape

Shape: Straight - 2 sides of the connection

Application: - Agriculture - Construction machinery - Industry - Mineral oil-based fluids

Size: 10 mm

Outer diameter: 35 mm

ISO standard: 7241-A

11926-1

Series: HNV

Connector thread diameter: 9/16inch

Connection diameter: 35mm

Surface treatment: White passivated

Connector thread type: UNF

Total length: 78mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 227g

Working pressure: 300BAR

Type of connector no. 2 - male/female: Female

Possibility of connecting under pressure: No

Max operating temperature: 100°C

Min operating temperature: -40°C

Quick connector lock type: Balls around the circumference

Connection method: Shifting the sleeve

Method disconnection: Sleeve offset

Type of connector no. 2: Thread

Thread diameter of connector no. 2: 3/8 inch

Thread type of connector no. 2: UNF

Number of turns per inch of thread of connector no. 2: 18

Flow at 2 bar pressure: 50l/min

Connector No. 1 Type: Quick Connect

Connector No. 1 Type - Male/Female: Female

Connector No. 1 Wrench Size: 24mm

Turns per Inch of Connector No. 1 Thread: 18
