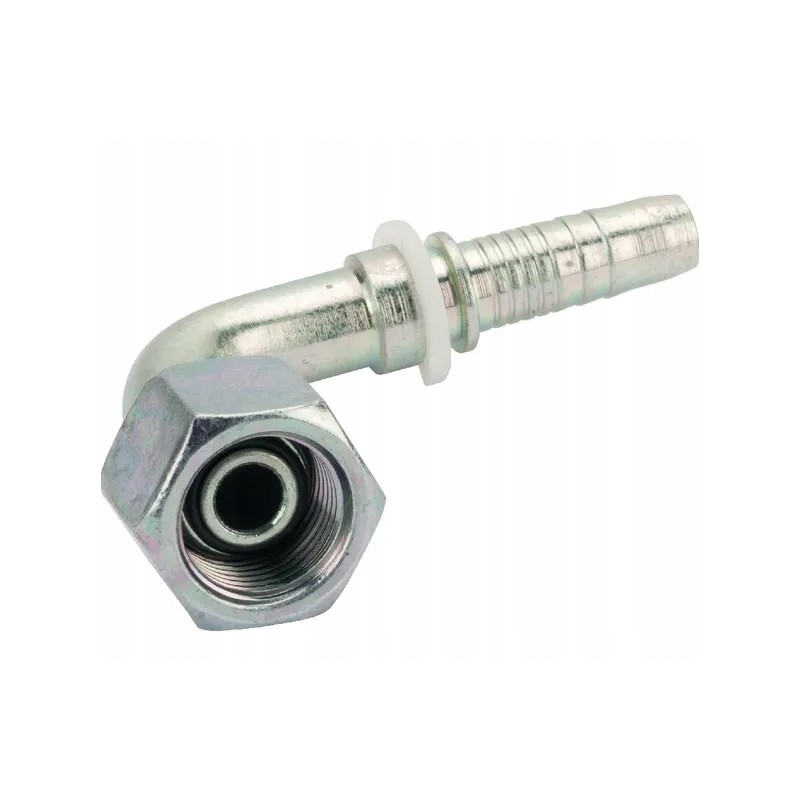

Pf10690 tip dn10 3 8 bsp 90

PF10690 Tip DN10-3/8 BSP-90°EAN

8716106440948

Cone angle

60 °

Shape

Elbow - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Type of connector no. 1 - code

DKOR

Length of connector no. 1

39.5 mm

Connector Thread Diameter

3/8 inch

Connector Thread Type

BSP

Wrench Size for Connector #1

22.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male

Connection no. 2 diameter

3/8 inch

Connection no. 2 diameter

10 mm

ISO standard< p>

228

Angle

90 °

Material

Steel

Surface treatment< p>

Galvanized

White passivated

OE reference number

H1220893-060600

Connection

BSP union nut with 60° external cone

Application

BSP screw connections

Material

Steel

Type

DKOR
