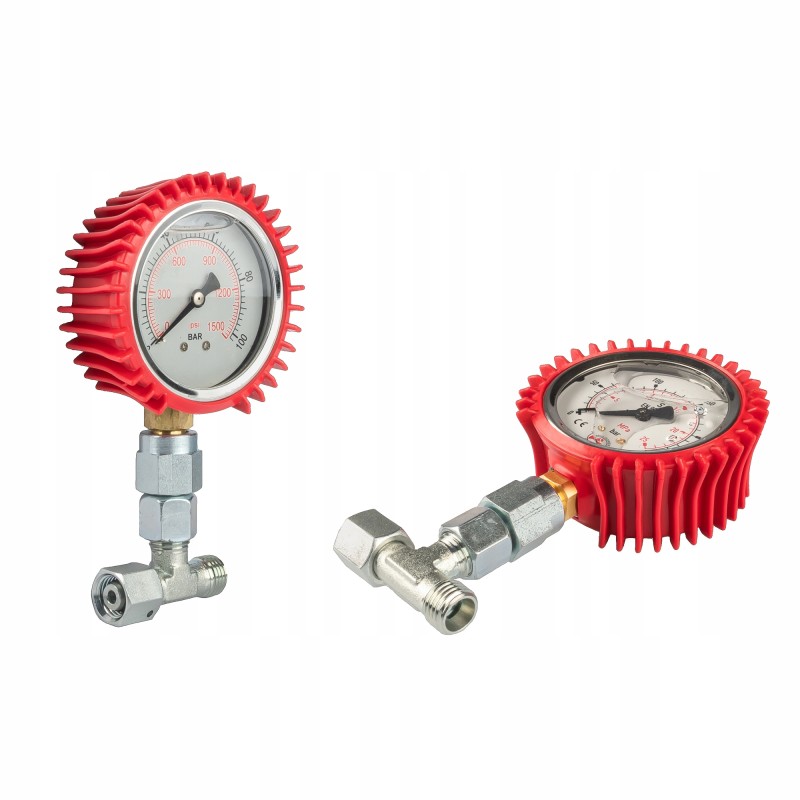

160bar pressure gauge with M16x1 5 hydrolider

MEASURING KIT FOR CHECKING PRESSURE IN THE HYDRAULIC SYSTEM GLYCERINE MANOMETER WITH BBA T-PIECE M16x1.5 PRESSURE MEASURING RANGE: 0-160 BAR (MANOM PREVIEW PHOTO. SEND WITH SCALE AS IN DESCRIPTION)

Set components:

Manometer

Manometer cover

At pressure gauge connection

BBA tee M16x1.5

Production:

Original product of the Hydrolider brand, symbol: 1.52.00.050.160.16

Application:

Widely used in hydraulic systems in agriculture, construction and industry.

Set intended for measuring oil pressure in closed hydraulic systems, in conditions for developing hydraulic pressure.

The AB tee allows you to quickly connect to the selected line of the hydraulic system and check the pressure. Just unscrew the hydraulic hose from the connection and connect it with the set.

Technical data:

Pressure measurement range: 0-160 Bar

Outer diameter of the clock: 63 mm

Clock connection port thread [BSP]: 1/4'

Operating temperature [°C]: -10 to +50

Accuracy class: 1.6

Quick connector, twisted plug, ISO standard

Quick connector thread: internal M36x1.5

Material:

Housing: steel

Viewfinder: glass

The set includes:

pressure gauge high-pressure glycerin with a measurement range of 0-160 bar

rubber cover protecting the pressure gauge against damage

connector connecting the pressure gauge with the cable

BBA type tee with M16x1.5 thread
