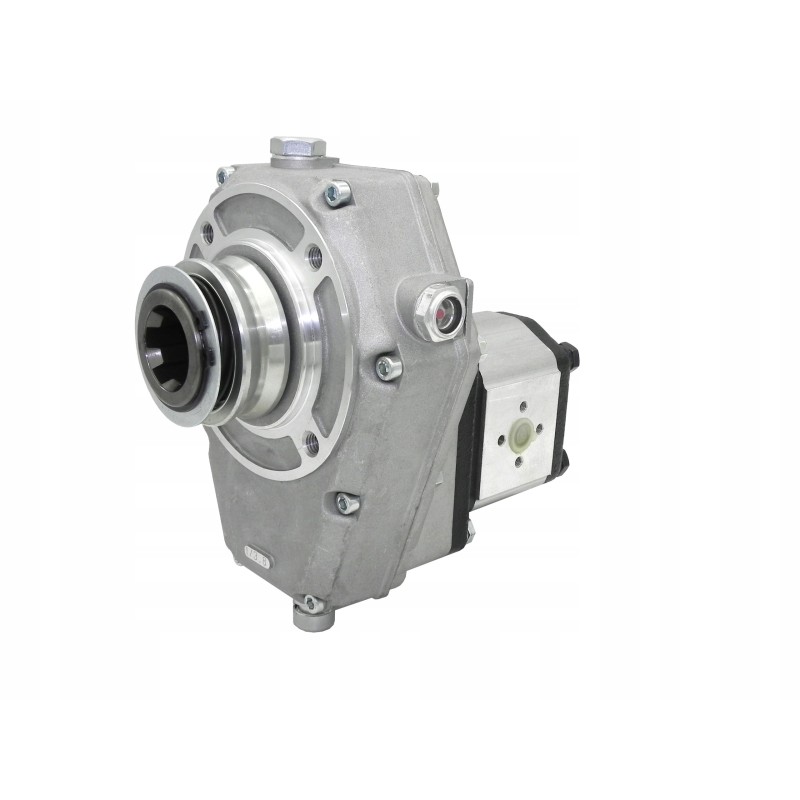

45l pump, small gear, female multiplier

SMALL 'MINI' MULTIPLIER IN A SET WITH A HYDRAULIC PUMP Set includes:

multiplier 1:3.8

gear pump 22 cm3

connecting clutch

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and industry in general.

A compact set, ideal for small and medium-sized forestry and construction machines, tractors and others with a PTO shaft at the output. The small gear allows the set to be installed in hard-to-reach places and on tractors and machines that have little space to install the gear.

Used wherever the original hydraulic pump installed in the machine is not strong and efficient enough or when an additional, new hydraulic system is needed to control the newly installed equipment.

Technical data of the set:

The gearbox is mounted on the PTO shaft using a latch, this solution makes it quite quickly mount or dismount.

The latch also prevents the gear from sliding off the PTO shaft.

Technical data of the gear:

Gear ratio: 1:3.8 Max power: 10 kW

A typical 1.3/8' PTO shaft protrudes from the gearbox

PTO shaft revolutions: max 540 rpm

It has a viewfinder to check the oil level gear.

Possibility to work with pumps of the second group

Material: aluminum body, steel gears

Requires filling with gear oil

For the first use, to increase the durability of the gearbox, it is recommended to change the oil after the first 50 operating hours.

Pump technical data:

Geometric volume: 22 cm3/rev

Direction of rotation : right

Maximum rotational speed: 2500 rpm

Maximum pressure in continuous operation in this set: up to 14 MPa

Set efficiency:

Performance depends on the revolutions of the PTO shaft to which the set is connected. The higher the PTO revolutions, the more efficient the pump.

Efficiency of the set in l/min relative to the PTO shaft revolutions:

220 rpm per PTO efficiency 19L/min

320 rpm on PTO, capacity 27L/min

430 rpm on PTO, capacity 36L/min

540 rpm on PTO, capacity 45L/min

Efficiency of the set in l/min relative to engine revolutions in tractors C-330, C-360, C-385, ZETOR, MF 255 and derivatives:

800 rpm on the engine efficiency 19L/min

1200 rpm on the engine, efficiency 27L/min

1600 rpm on the engine, efficiency 36L/min

2000 rpm on the engine, efficiency 45L/min
