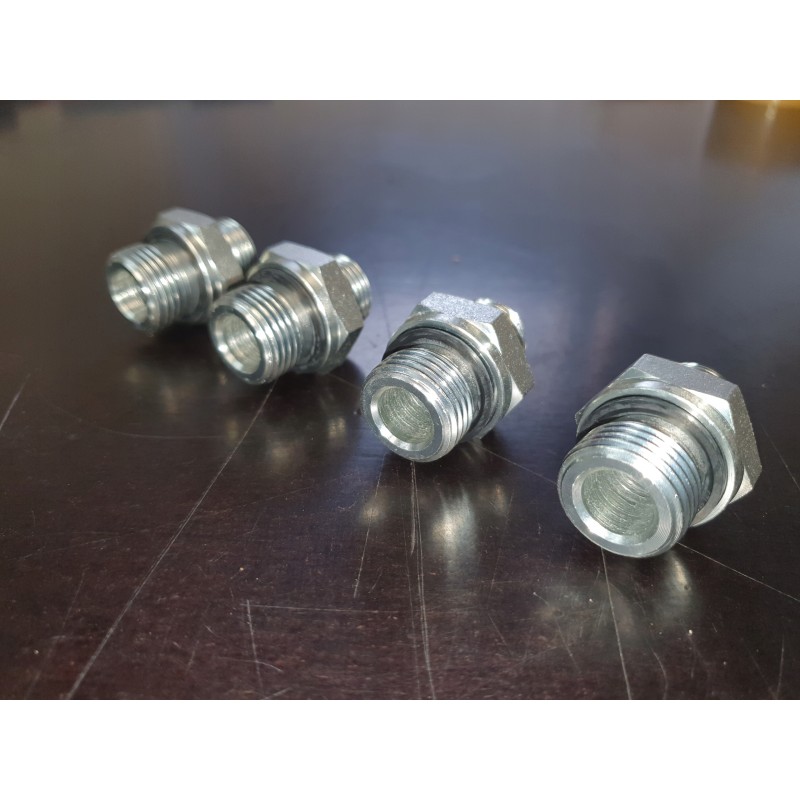

Straight connection, nipple g3 8 m22x1 5

HYDRAULIC CONNECTIONSTRAIGHT NIPPLE G3/8' M22x1.5Application:

The hydraulic connection is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.< p>

The connection is designed to be screwed into the body of, among others: a pump, a distributor, etc.

It is used to connect the main components in the hydraulic system with hydraulic lines.

On the connection side there is the ED seal is installed, which fully seals the system.

The other side is responsible for connecting the hydraulic conduit or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

The connection is designed to be screwed into the body. It should not be used to connect two hydraulic lines.

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Total length H: 35mm< p>

Nominal diameter of the passage: 11.5mm

G1 thread on the body side: external inch 3/8'

M2 thread on the cable side: external metric 22x1.5

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
