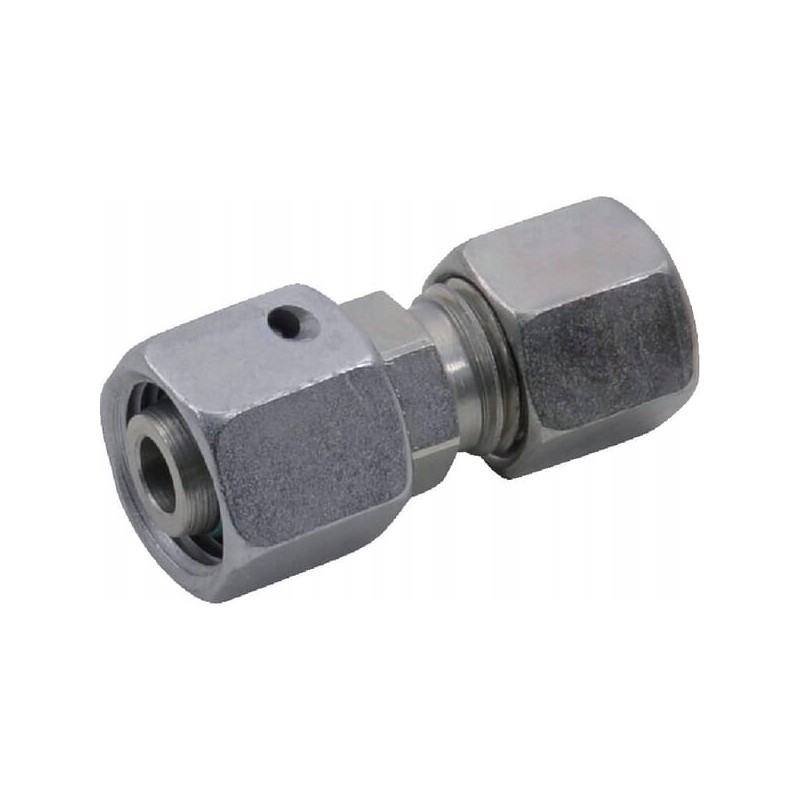

Reducing connector with seals m18x1 5 12l m14x1 5 8l

Reducing connector with gasket M18x1.5 12L - M14x1.5 8L Parameters

Part number: REDVD128L

Unit: Piece

Manufacturer: Voss

EAN: 8719607089920

Shape: Straight - 2 sides of the connection

Connector type no. 1 - male/female: Female

Connection diameter: 8 mm

Connector No. 1 length: 25 mm

Connector No. 1 thread diameter: M14

Connector No. 1 thread pitch: 1.50 mm

Wrench size connector no. 1: 22 mm

Wrench size for connector no. 1: 17.0 mm

Connector no. 2 type - male/female: Female

Connector no. 2 length : 39.5 mm

Connection No. 2 thread diameter: M18

Connection No. 2 thread pitch: 1.50 mm

Connection No. 2 thread type: Metric

Wrench size for connector no. 2: 17.0 mm

DIN standard: 2401

Max working pressure: 400 BAR

Advantages

- Assembled with end stop

- Limited risk of leakage

Product details

- Pre-assembled with o-ring

- High corrosion resistance - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request

Benefits

- Installation with end stop

- Low risk of leakage

Seal material

- Nitrile rubber [NBR]

- Viton

Series

- 12L

- 8L
