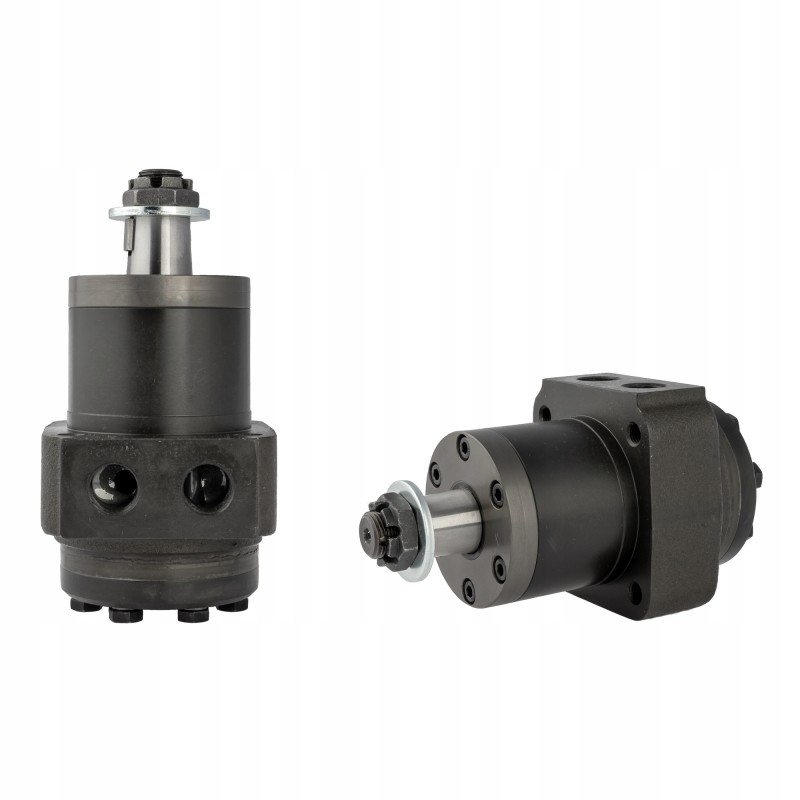

Hydraulic motor mpw 50 k o4 ws1 10 1210 rpm

HYDRAULIC MOTOR TYPE MPW 50 TYPE: ADDITIONAL BEARINGSHAFT: 1:10 MAX ROTATION: 1210 rpm Production:

Original product of the M+S Hydraulic brand, symbol: 1.37.11.051

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

MPW 50 hydraulic motor with additional bearings, intended for use in various types of agricultural and industrial equipment. Recommended mainly for driving the drum in a chipper, conveyor belts, for driving chains, transmission belts, etc.

Recommended use:

Wrappers, forage harvesters, spreaders

Sweepers, sand spreaders , snow blowers

Trimmers for carrots, beets, onions and others

Leaf and branch clearers

Conveyor belt drives

Chippers and shredders branches

Forest winches and vehicle winches

Orchard drilling rigs and drilling rigs for holes in the ground

Characteristics and advantages of MPW engines manufactured by Hydrolider:

distribution valve integrated with the output shaft

possibility of connecting in series and parallel

high starting torque and smooth operation immediately after starting

high resistance to axial and radial forces< p>

simple installation

low noise level

long service life even under difficult conditions of use

The design of MPW engines is light and compact, and the engine it is medium sized. Orbital motors are recommended for systems that operate in light conditions and where there is less demand for torque and speed.

Technical data:

Rotation direction: double-sided

Internal threads in the body: 1/2'

Ports: side connection

Body material: cast iron

Maximum parameters in continuous operation:

Maximum flow: 60L/min

Maximum rotation speed: 1210 rpm

Maximum pressure: 14 MPa (140 bar)

Maximum power: 10.1 kW

Maximum torque: 9.2 daNm (92 Nm)

Maximum parameters in momentary operation max 6 seconds every minute:

Maximum flow: 75 l/min

Maximum rotation speed: 1515 rpm

Maximum pressure: 17.5 MPa (175 bar)

Maximum power: 12.2 kW

Maximum torque: 11.9 daNm (119 Nm)

Oil types recommended by AGRICOLA:

Rare high-quality oil: LOTOS AGROL BOXOL 26

Medium-thick high-quality oil: AGRO OIL L-HL 32

Thick high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range :

Permissible ambient temperature: -40 C to +80 C

Permissible oil temperature: -15 C to +80 C

THE ENTIRE SERIES OF MPW ENGINES AVAILABLE ON OTHER AUCTIONS - BELOW IS A TABLE OF PARAMETERS FOR ALL ENGINES FROM THIS SERIES
