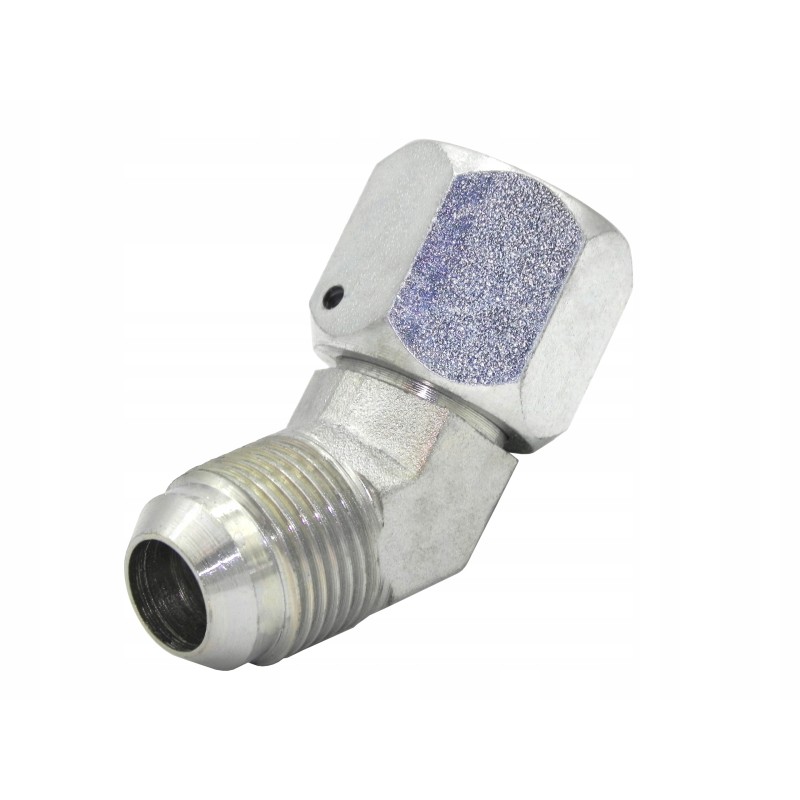

Hydraulic elbow 45 unf 9 16 with nut
  • Hydraulic elbow 45 unf 9 16 with nut
  • Hydraulic elbow 45 unf 9 16 with nut

Hydraulic elbow 45 unf 9 16 with nut

15010425667795
£16.80
Quantity
5 Items

Description
HYDRAULIC ELBOW 45° UNF 9/16'' WITH NUT Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connector with conical self-seal when tightening. Designed to connect two hydraulic lines or to connect to other connectors with the same cone system.

Technical data:

Thread on one side: external inch UNF 9/16''

Thread on the other side: internal inch UNF 9/16''

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010425667795
KN U9/16 45
5 Items
New

Data sheet

Manufacturer
Other (Pozostałe)
Part Number
KN U9/16 45
