Quick connector socket m18x1 5 9100818g

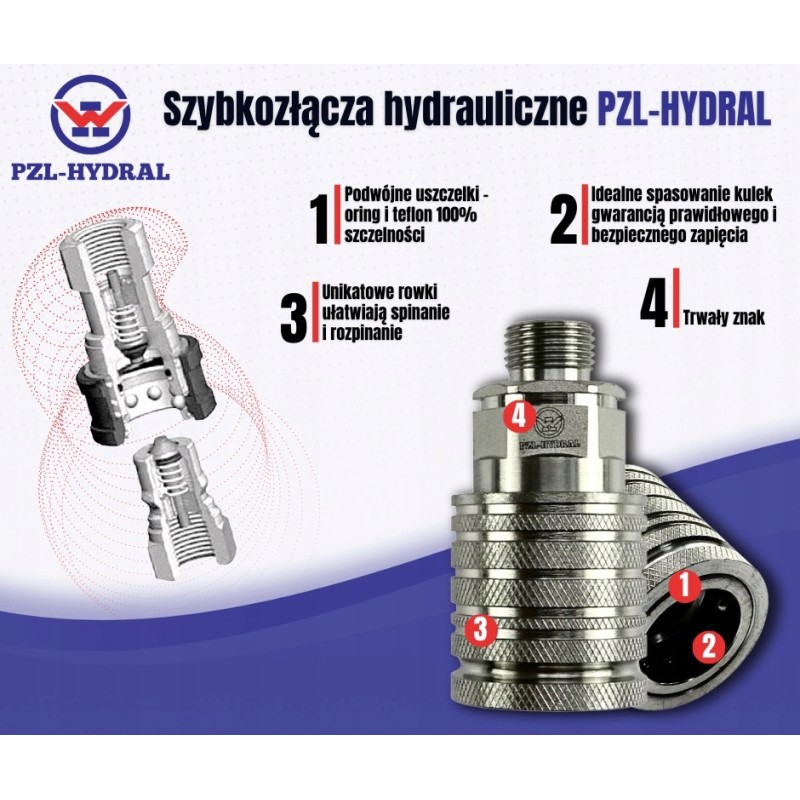

Hydraulic quick connector, socket M18x1.5, external thread EURO PUSH-PULL (9100818G) (ISO 7241-A) HYDRAL

Hydral

Hydraulic connector M18 socket Technical data:

* Thread: M18x1.5 external

* Valve type: IP with poppet valve * Standard: ISO 7241-1 series 'A'

* Pressure: up to 350 bar

* Material: galvanized carbon steel * Operating temperature: NBR -20°C/+100°C

* Flow: up to 200 l/min

* Connection system: Push-Pull

* Residual pressure - connection: impossible, disconnection: impossible

* Sealing: NBR, VITON

Application:

* Universal use in hydraulics Catalog number:

- HP101L1218PH

- WIAM18MZ-PP

- B300-HP101L1218PA

- HFSMC7612-M18X1.5 12L

Alternative names:

* Quick connector

* Female connector

HYDRAL QUICK CONNECTORS The highest-class HYDRAL hydraulic quick connectors are connectors in the euro standard ISO 7241 Series A. We present quick connectors that meet the high requirements of customers from many industries. The use of HYDRAL solutions enables easy, safe and durable, and above all, instantaneous connection of several hydraulic lines of different sizes and applications at the same time.

By using HYDRAL quick connectors, you ensure proper flow of the working fluid and a safe connection.

HYDRAL connectors - tailored to your needs.
