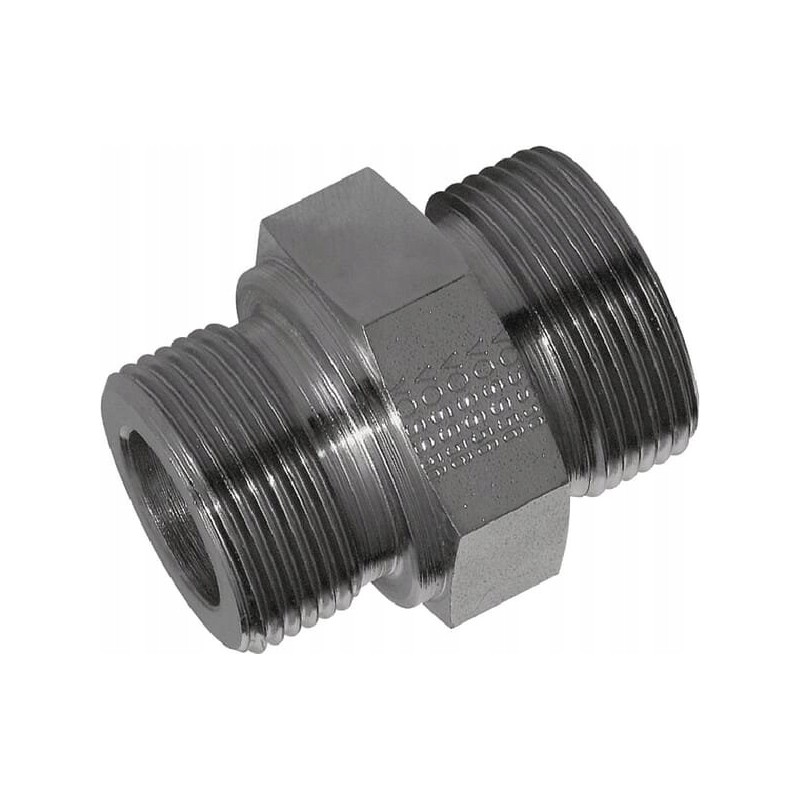

Straight connection 1 2 bsp m30x2 20s

Straight connection 1/2' BSP - M30x2 20S Parameters

Part number: GES20SR12

Unit: Piece

Manufacturer: Voss

EAN: 8719607078955

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 20 mm

Connector No. 1 Thread Diameter: M30

Connector Thread Length: 14 mm

Connector No. 1 Thread Pitch: 2.00 mm

Connector Thread Type: BSP

Connector No. 1 Wrench Size: 26 mm

Connector No. 1 Wrench Size: 32.0 mm

Type connector no. 2: Thread

Connector no. 2 type - male/female: Male

Connector no. 2 thread diameter: 1/2 inch

Number of turns per inch of connector no. 2 thread: 14

Connector no. 2 thread type: BSP

Wrench size for connector no. 2: 36.0 mm

Pipe diameter: 20 mm

ISO standard: 228

Internal diameter: 12 mm

Length: 45 mm

Working pressure max.: 200 BAR

Series: S

Tightening torque max.: 160 N m

Dimension from the axis of the joint to the end of the next joint 42mm

Dimension from the axis of joint no. 2 to the end of the next joint 20.5mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
