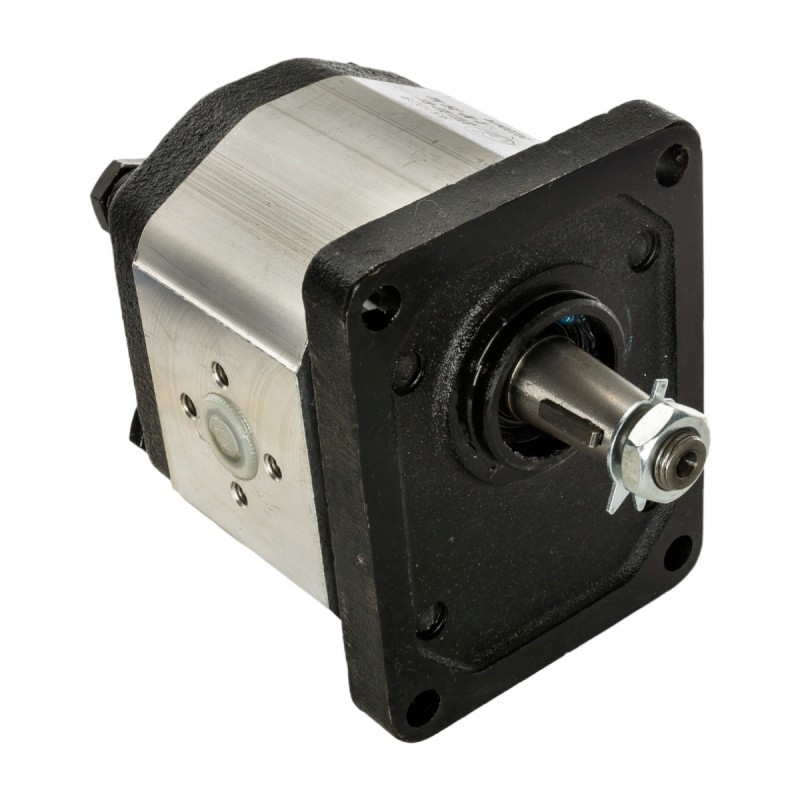

Gear engine 8cc EU 1:8 group 2 87001302 MIZAR number: 70495

Gear engine 8cc EU 1:8 group 2 87001302 Technical information: Displacement: 8cm³/rev

Working pressure maximum: 270bar

Maximum revolutions per minute: 3500

Minimum revolutions per minute: 500

Leak oil connection: G 1/4' (BSP)

Direction of rotation: reversible

Flange: European

Centering diameter: 36.5mm

Shaft: European, cone 1:8< p>

Material: aluminum housing, flange and cover made of cast iron

The exact dimensions in millimeters are given in the drawing.

connection: 4 holes, European standard

mineral-based hydraulic oils, liquid temperature: -10°C to max. 80°C

recommended viscosity: 10 mm² 2 /s - 100 mm² 2 /s

filtering accuracy: 12-15 microns

rotation direction: reversible, 2 directions of rotation

Reference number: 87001302

Application: Agricultural tractors

MIZAR number: 70495
