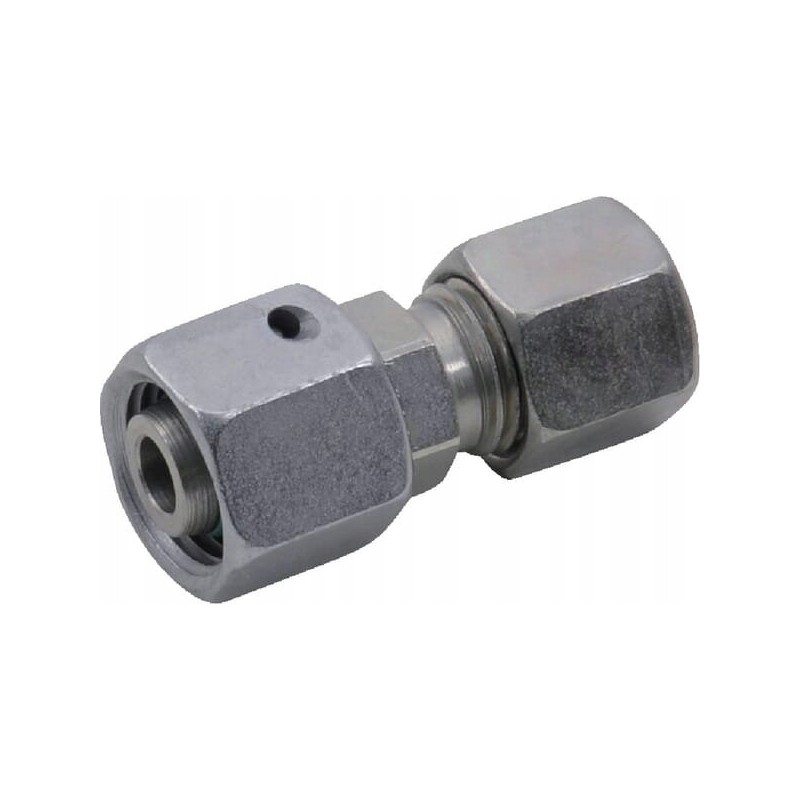

Reducing connector with seals m22x1 5 15l m18x1 5 12l

Reducing connector with gasket M22x1.5 15L - M18x1.5 12L Parameters

Part number: REDVD1512L

Unit: Piece

Manufacturer: Voss

EAN: 8719607086394

Shape: Straight - 2 sides of the connection

Connector type no. 1 - male/female: Male

Connection diameter: 12 mm

Connector No. 1 length: 29 mm

Connector No. 1 thread diameter: M18

Connector No. 1 thread pitch: 1.50 mm

Wrench size connector no. 1: 27 mm

Wrench size for connector no. 1: 19.0 mm

Connector no. 2 type - male/female: Female

Connector no. 2 length : 43.5 mm

Connection No. 2 thread diameter: M22

Connection No. 2 thread pitch: 1.50 mm

Connection No. 2 thread type: Metric

Wrench size for connector no. 2: 22.0 mm

DIN standard: 2401

Max working pressure: 400 BAR

Advantages

- Assembled with end stop

- Limited risk of leakage

Product details

- Pre-assembled with o-ring

- High corrosion resistance - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request

Benefits

- Installation with end stop

- Low risk of leakage

Seal material

- Nitrile rubber [NBR]

- Viton

Series

- 15L

- 12L
