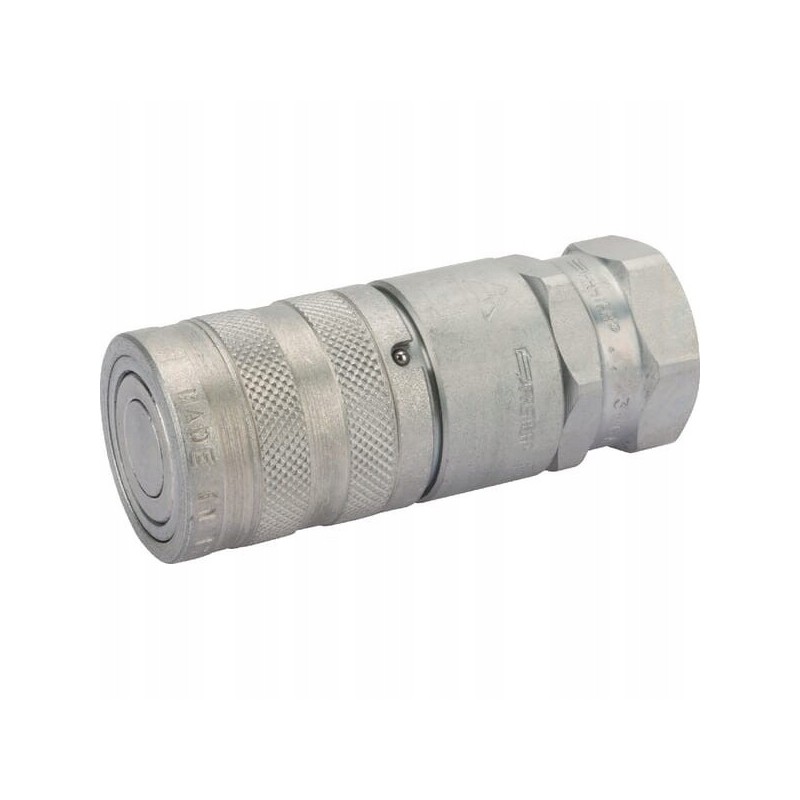

Flat quick connector ffh socket 1 internal 1 1 4 bsp

FFH flat quick connector socket 1 female thread 1-1/4 BSP INDEX: FFH16114GASF

Length: 103mm, 103mm

Material: Carbon steel, Carbon steel

Specifications : - One-hand connection - With special flat valve - Protection against accidental disconnection, - One-hand connection - With special flat valve - Protection against accidental disconnection

Benefits: - Easy operation - Minimum leakage rate - Connection without air inclusions, - Easy operation - Minimum degree of leakage - Connection without air inclusions

Properties: - Highest corrosion resistance - Axial actuation of the locking sleeve towards the rear (single-acting) - With double-sided cut-off - Induction hardening in places exposed to rapid wear - Cannot be joined under pressure, - Highest corrosion resistance - Axial actuation of the locking sleeve towards the rear (single-sided action) - With shut-off on both sides - Induction hardening in places exposed to rapid wear - Cannot be joined under pressure

Valve type: Flat, Flat

Shape: Straight - 2 sides of the connection, Straight - 2 sides of the connection

D: 55mm, 55mm

Application: - Can be used in ecologically sensitive areas - Hydraulic tools - Construction and agricultural machinery - Ship construction - Mineral oil based fluids, - Can be used in ecologically sensitive areas - Hydraulic tools - Construction and agricultural machinery - Ship construction - Mineral oil based fluids< p>

Size: 25mm, 1 inch

Outer diameter: 55mm, 2.17 inch

ISO standard: 16028, 16028

Series: FFH, FFH

Connector thread diameter: 1/4inch, 1/4inch

Connection diameter: 55mm, 55mm

Surface treatment: Zinc

Nickel-plated, Zinc

Nickel-plated

Connector thread type: BSP, BSP

Total length: 103mm, 4.06inch

Seal material: Nitrile rubber [NBR], Nitrile rubber [NBR]

Weight: 1110.5g, 1110.5g

Working pressure: 350BAR, 350BAR

Connector type no. 2 - male/female: Female, Female

Possibility of connecting under pressure: No, No

Max operating temperature: 100°C, 100°C

Temperature working min: -25°C, -25°C

Quick connector lock type: Balls around the circumference, Balls around the circumference

Connection method: Press to connect, Press to connect< p>

SW: 50mm, 50mm

Disconnection method: Sleeve offset, Sleeve offset

Connector type no. 2: Thread, Thread

Thread diameter connections no. 2: 1-1/4 inch, 1-1/4 inch

Size (code): BG 8, BG 8

Connection no. 2 thread type: BSPP, BSPP

Number of turns per inch of thread of connector no. 2: 11, 11

Flow at 2 bar pressure: 230l/min, 230l/min

Type of connector no. 1: Quick connector , Quick Connector

No.1 Connector Type - Male/Female: Female, Female

No.1 Connector Key Size: 50mm, 1.97inch
