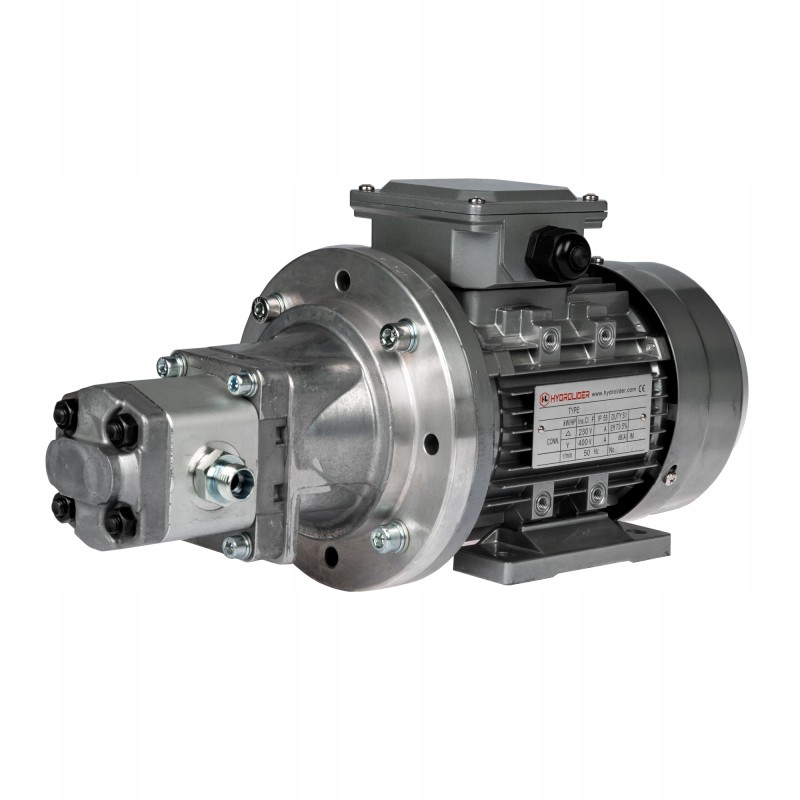

Pump 1 51l engine 380v 1 1kw 25mpa hydrolider

ELECTRIC MOTOR 1.1 kW + GEAR PUMP 1.51 L/min Set composition:

3-phase motor

legs for mounting the motor

gear pump

bell connector

claw coupling

straight connections

Production:

Original product of the Hydrolider brand , symbol: 1.40.52.1514

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Engine with general purpose pump, designed for continuous operation.

Technical data of the set:

Motor power supply: 380V

Efficiency of the pump in the set: constant 1.518L/min

Maximum pressure in the set: 25 MPa

Recommended maximum pressure in continuous operation: 20 MPa

Engine speed: 1390 rpm (constant)

Engine mechanical size: G80

Engine power: 1.1kW

Engine type: B35 flange-foot

Pump type: GR1 1.10cm3 ( European standard)
