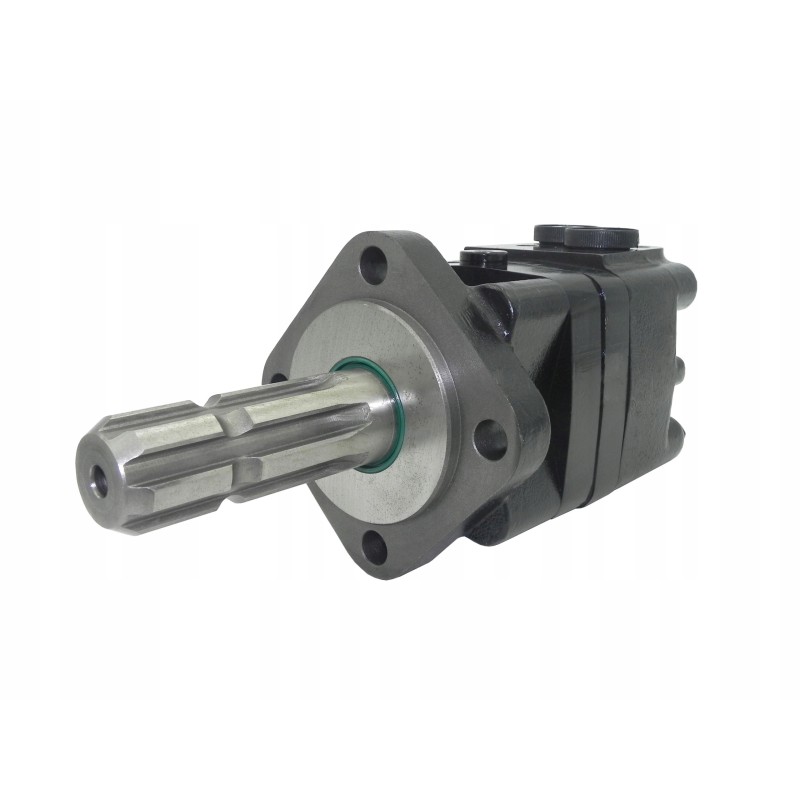

Hydraulic motor sms oms bms omzs 200 pto shafts

SMS 200 HYDRAULIC ENGINE TYPE: REINFORCED GEROLLER SHAFT: PTO 1.3/8' MAX SPEED: 375 rpm Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Motors with the same dimensions, depending on the origin and manufacturer, appear under different symbols, including: OMS, BMS, SMS, OMSS, OMZS and others

SMS 200 hydraulic motor intended primarily for use in various types of agricultural and industrial equipment. In systems where there is a high demand for power and torque.

Recommended use:

Wrappers, forage harvesters, spreaders

Sweepers, sand spreaders, snow blowers

Leaf and branch shredders

Conveyor drives

Chippers and branch shredders

Forest winches and winches for vehicles

Orchard drilling rigs and drilling rigs for holes in the ground

Travel drives

Technical data:

Direction of rotation: double-sided

Internal threads in the body: G 1 /2'

Ports: side connection

Body material: cast iron

Maximum parameters in continuous operation:

Maximum flow: 65 l/min

Maximum rotation speed: 375 rpm

Maximum pressure: 14 MPa

Maximum power: 16.6 kW

Maximum torque: 400 Nm

Maximum parameters in temporary operation, max. 6 seconds every minute:

Maximum flow: 80 l/min

Maximum rotation speed: 450 rpm

Maximum pressure: 16 MPa

Maximum power: 19 kW

Maximum torque: 466 Nm

Characteristics and advantages of our SMS motors

additionally bearinged shaft

roller bearings in the drive instead of plastic inserts

possibility of connecting in series and parallel

high starting torque and smooth operation right after start-up

high resistance to axial and radial forces

simple installation

low noise level

long service life even at difficult conditions of use

The structure of SMS engines is based on the GEROLLER system which involves the use of reinforced roller bearings inside. The rollers provide the highest resistance to overloads and long engine life. Roller motors are recommended for systems that operate in difficult conditions, during long, uninterrupted work in agriculture and industry.

ATTENTION! The cheapest motors offered on the market are not GEROLLER, they do not have roller bearings, only rigid bushings, ask your current supplier what type of motors he offers.

We offer most types of hydraulic motors as well as the complete assortment in the field of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
