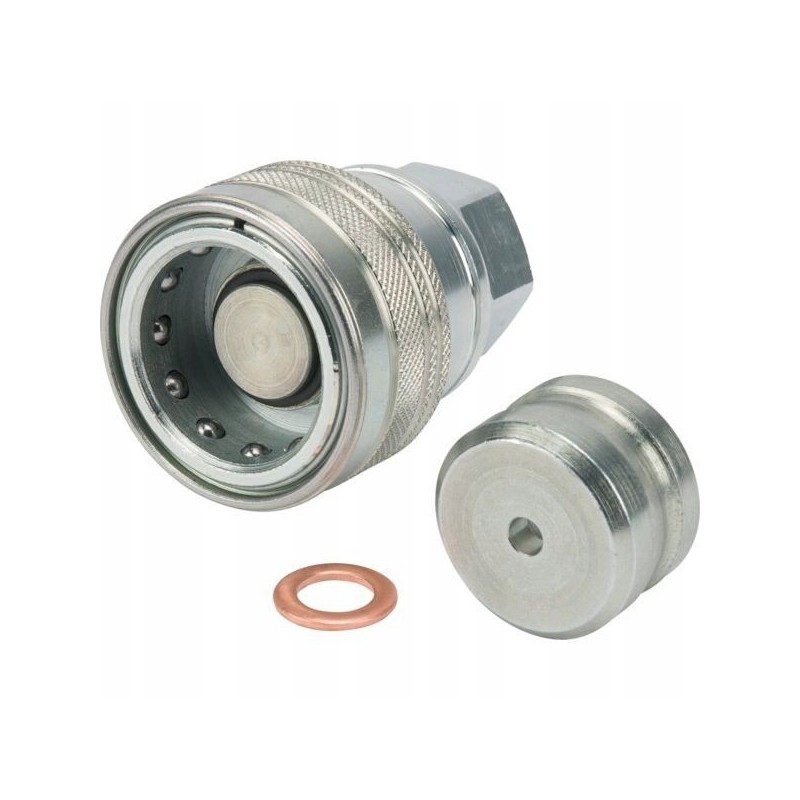

Vf1815f flat quick connector brake system vf 3 8

Flat quick connector for the VF braking system, socket 3/8, internal thread M18x1.5 INDEX: VF1815F

Material: Steel

Technical information: - The connector must be screwed on until it stops

Specifications: - Connector with a special flat valve

Benefits: - Minimal leakage rate

Properties: - Connection without air inclusions - Cannot be connected under pressure

Shape: Straight - 2 sides connections

Application: - Hydraulic braking systems - Mineral oil based fluids

Size: 10 mm

Outer diameter: 44 mm

ISO standard: 5676

Connection diameter: 44 mm

Surface treatment: White passivated

Total length: 54.5 mm

Seal material : Nitrile rubber [NBR]

Teflon (PTFE)

Working pressure: 150BAR

Type of connector no. 2 - male/female: Female

Working temperature max: 125°C

Working temperature min: -25°C

Thread pitch of connector no. 2 : 1.5mm

Connection type no. 2: Thread

Connection thread diameter no. 2: M18

Connection thread type no. 2: Metric

Flow at 2 bar pressure: 40l/min

Connection type no. 1: Quick connector

Connection type no. 1 - male/female: Female
