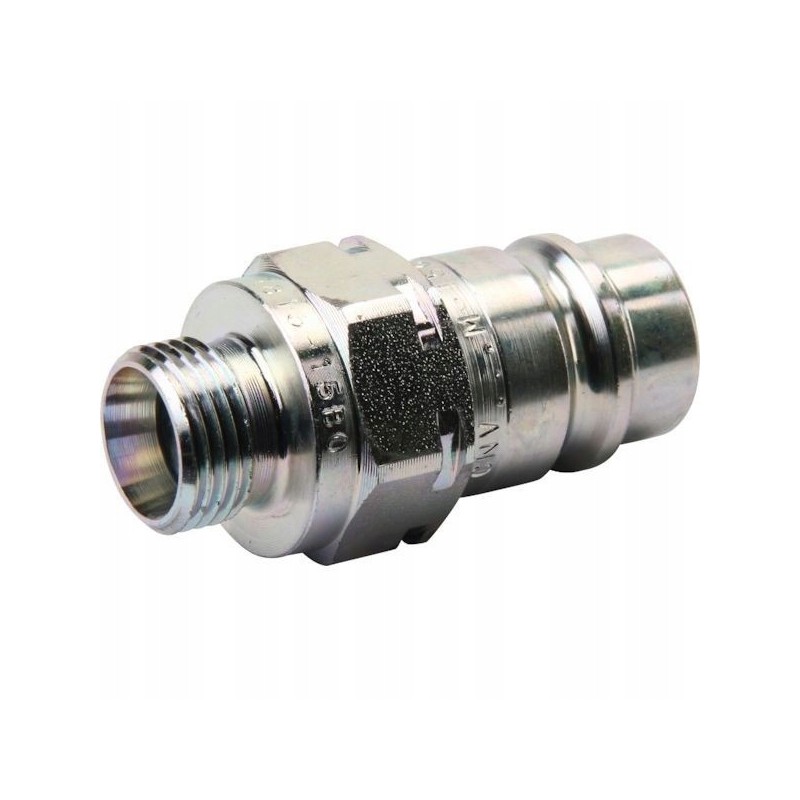

Quick connector m18 plug cnv0821815m

Part number: CNV0821815M

Unit: piece

Material: Carbon steel

Technical information: - Connection is made by inserting the plug (one-handed operation)

Properties: - Induction hardening in places exposed to rapid wear - Matching sleeves: CPV Faster

Valve type: Poppet

Application: - Universal use - Agricultural machinery - Based fluids mineral oil

Size: 12.5mm

Outer diameter: 30mm

ISO standard: 7241-A

Series: CNV

Connector thread diameter: 1/2 inch

Connector thread pitch: 1.50mm

Connection diameter: 20.5mm

Surface treatment: White passivated

Connector Thread Type: Metric

Total Length: 2.24in

Wrench Size: 27.0mm

Seal Material: Nitrile Rubber [ NBR]

Thread diameter: 18mm

Weight: 100.2g

Working pressure: 300BAR

Connector type - male/female: Male

Thread type - code: 02

Connector type no. 2 - male/female: Male

Possibility of connection under pressure: Yes

Operating temperature max: 125°C

Operating temperature min: -25°C

Type of quick connector lock: Balls around the circumference

Connection method: Press to connect

L1 Total length: 57mm

Disconnect method: Pull to disconnect

Diameter at plug end: 20.5mm
