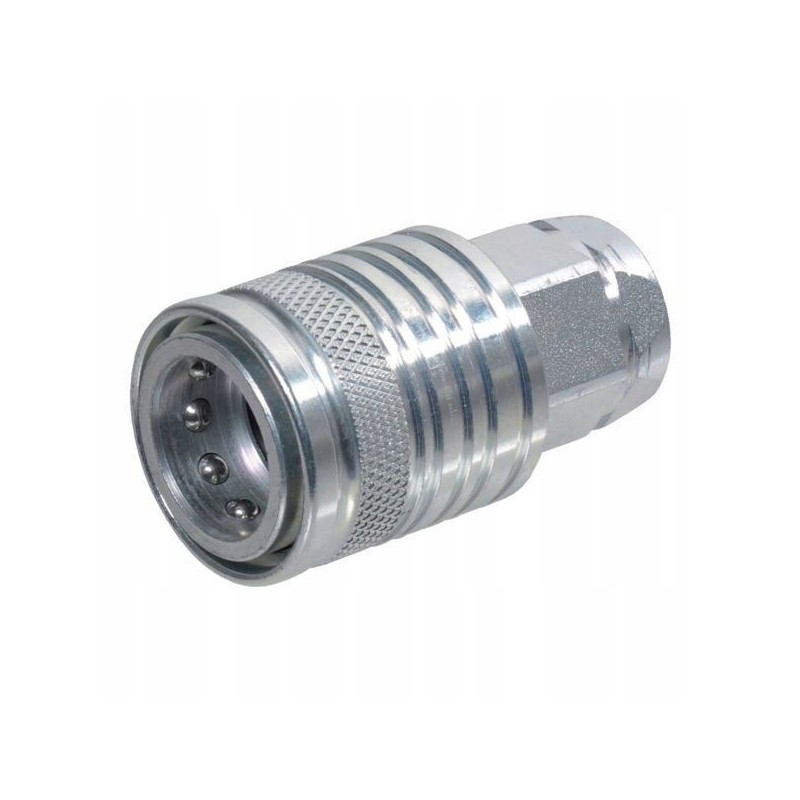

Skpf12c06 quick connector ISO 12 5 internal thread 3 8 BSP

Quick connector ISO 12.5 internal thread. 3/8 BSP - socket INDEX: SKPF12C06

Material: Steel

Features: - Standard agricultural connector - Push & Pull principle - Tear-off function - With double-sided shut-off - Axial actuation of the locking sleeve in both directions (double-sided action)

Shape: Straight - 2 sides of connection

Application: - Universal use - Machines agricultural - Municipal technology - Mineral oil based fluids

Size: 1/2 inch

Outer diameter: 38 mm

ISO standard: 7241-1-A

Connection diameter: 20.5 mm

Surface treatment: White passivated

Total length: 70 mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Working pressure: 250BAR

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: No

Working temperature max: 100°C

Working temperature min: - 30°C

Type of connector no. 2: Thread

Thread diameter of connector no. 2: 3/8 inch

Size (code): BG 3

Thread type of connector no. 2: BSP

Number of turns per inch of thread of connector no. 2: 19

Type of connector No. 1: Quick Connector

Connector Type No. 1 - Male/Female: Female
