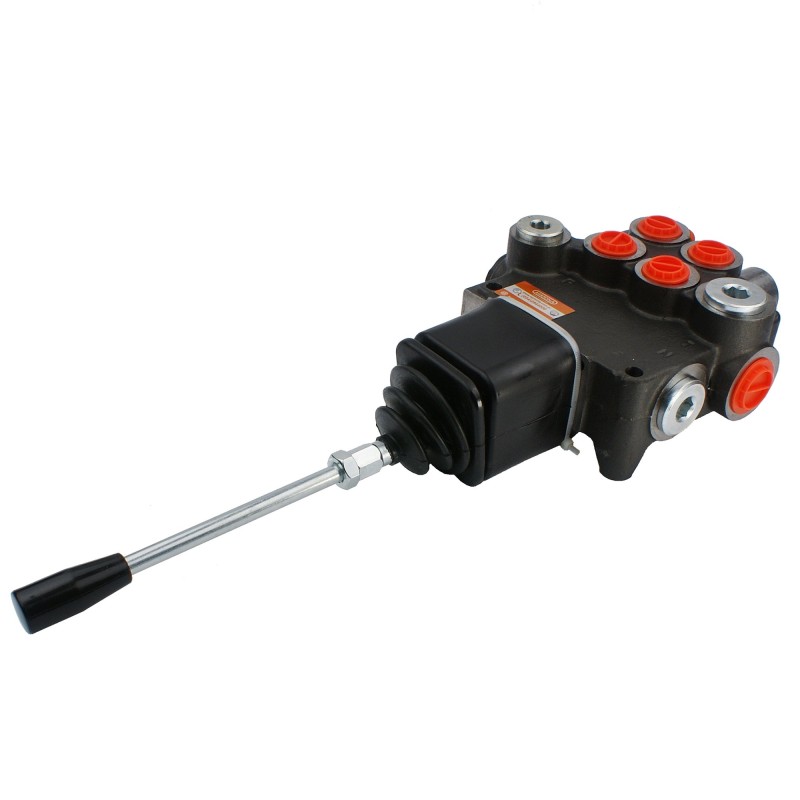

2-SECTION HYDRAULIC DISTRIBUTOR P80 CONTROLLED BY A BUILT-IN JOYSTIC Production:

Original product of the Badestnost Bulgaria brand, manufacturer's symbol: 02P80 A1A1+JOY, symbol: 1.10.10.029

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, Cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Technical data:

Recommended oil flow in the system: 0 - 80 l/min.

Example control: two double-acting cylinders.

Possibility of serial connection to an existing system (pressure sleeve required).

Control:< p>

Five-position joystick (1 - 2 - 0 - 3 - 4), spring-loaded, i.e. it returns to the vertical by itself:

Neutral position 0 (joystick set vertically), the piston rods of both actuators are stationary - the oil goes to the overflow.

Working position 1 (joystick lever set in a forward diagonal position), the piston rod of the first actuator extends.

Working position 2 (joystick lever set in a backward diagonal position) ) the piston rod of the first actuator retracts.

Working position 3 (joystick lever set in a diagonal position to the left) the piston rod of the second actuator extends.

Working position 4 (joystick lever set in a diagonal position to the right), the piston rod of the second actuator retracts.

On the right, a hydraulic diagram of the offered distributor:

Connection:

Power supply from the pump (P1, P2): thread internal BSP 1/2''

Return to tank (T1, T2): internal thread BSP 3/4''

Sections (A1, A2, B1, B2): thread internal BSP 1/2''

Series connection (N): BSP internal thread 3/4'

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on the sections: 300Bar

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 20 l/min

190 bar at 40 l/min

200 bar at 60 l/min

210 bar at 80 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

It is recommended to check and set the appropriate pressure before starting.
