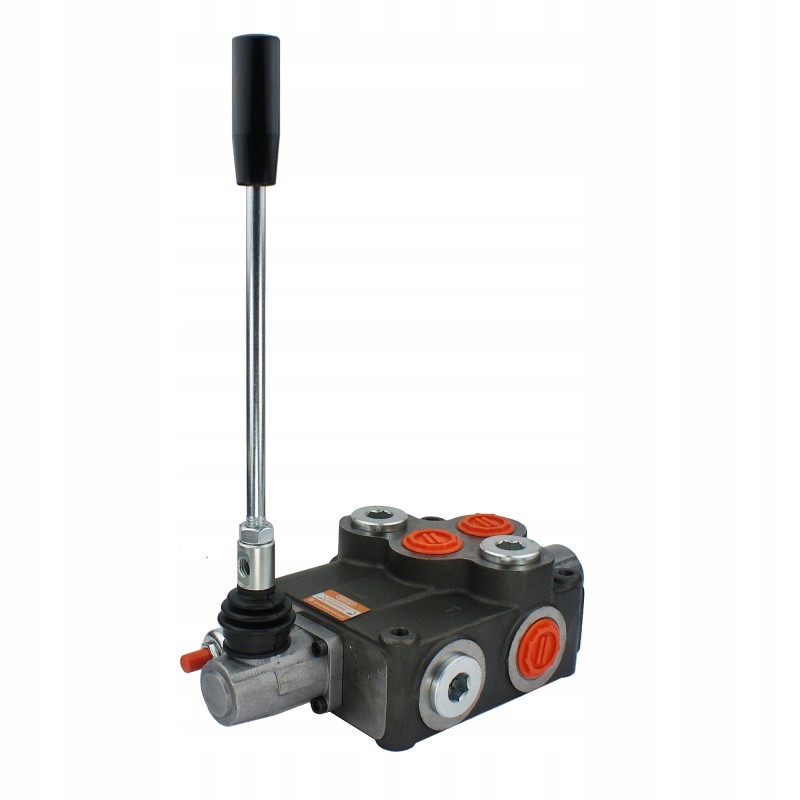

Hydraulic distributor 1s 120l a8 badestnost

BEWARE OF COUNTERFEITERS!!! AT THIS AUCTION YOU WILL BUY AN ORIGINAL DISTRIBUTOR FROM THE BULGARIAN PRODUCTION OF BADESTNOST Why are fake fakes cheaper than the original ones?

Primarily because they are characterized by much lower quality and durability as well as poor precision of workmanship. They are made of materials of unknown origin. They are often a conglomeration of various working components and parts obtained from unspecified sources and assembled without observing any technical standards.

A feature characteristic of original Badestnost distributors.

Engraving with the symbol, manufacturer's name and country of origin:

1-SECTION HYDRAULIC DISTRIBUTOR P120 Production:

Original product of the Badestnost Bulgaria brand, manufacturer's symbol: P120 A8 GKZ1, symbol: 1.10.20.011

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, aurochs, cyclops , HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Technical data:

Recommended oil flow in the system: 0 - 120L/min.

Example control: double-acting actuator.

Possibility of serial connection to an existing system (pressure sleeve required).

Control:

Three-position lever (1 - 0 - 2), with a latch, i.e. it holds the position in the working position:

Position 0 neutral (lever set vertically), the engine is standing - the oil goes to the overflow.

Working position 1 (lever set in a forward diagonal position), the engine rotates to the left.

Working position 2 (lever set in a backward diagonal position), the engine turns to the right.

On the right side, hydraulic diagram of the distributor:

Connection:

Supply from the pump (P): BSP 1'' internal thread

Return to the tank ( T): BSP 1'' internal thread

Sectional outlet (A, B): BSP 1'' internal thread

Series connection (N): M36x1.5 internal thread< p>

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

The overflow valve is factory set to 180Bar ± 30 Bar. It is recommended to check and set the appropriate pressure before starting. Possibility of self-adjustment, full turn change by 30Bar.

Oil types recommended by AGRICOLA:

Thinner, high-quality oil: LOTOS AGROL BOXOL 26

Thicker, high-quality oil : FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C up to +80 C
