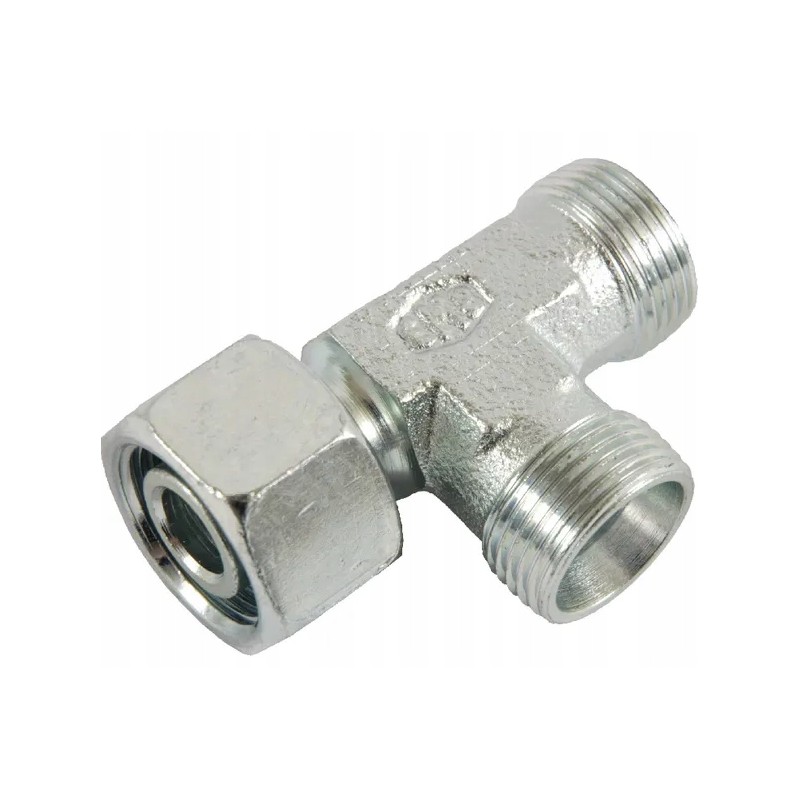

Asymmetric T-connector m18x1 5 12l

ELSD12L Tee connector with asymmetrical nut M18x1.5 12LEAN

8716106786497

Advantages

2S cutting ring

Product details

2S cutting ring - Optimal connection with the cutting ring and excellent performance

Increased corrosion resistance

Shape

Tee (T) - 3 connections

Connector No. 1 Type

Thread

Connector No. 1 Type - Male/Female

Male

Connector No. 1 Thread Diameter

M18

Connector No. 1 Thread Pitch

1.50 mm

Connector Thread Type

Metric

S2 Wrench Size for Connector No. 1

22.0 mm

Connector type 2

Thread

Connector type 2 - male/female

Male

Connector 2 thread diameter

M18

Connector 2 thread pitch

1.50 mm

Connector 2 thread type

Metric

S2 Connector wrench size No. 2

22.0 mm

Connector Type No. 3

Swivel Nut

Connector Type No. 3 - Male/Female

Female

Connector No. 3 Length

42

Connector No. 3 Thread Diameter

M18

Connector No. 3 Thread Pitch

1.50 mm

Type thread of connector No. 3

Metric

L2 Dimension from the axis of the connector to the end of the next connector

32 mm

L1 Dimension from the axis of connector No. 2 to the end of the next connector

29.5 mm

L Dimension from the axis of connector No. 3 to the end of the next connector

17 mm

Pipe diameter

12 mm

DIN standard

2353

3865

2401

Internal diameter

10.44 mm

8 mm

S1 Body height

19 mm

Surface treatment

Zinc

Nickel-plated

Working pressure max.

400 BAR

Inner diameter sealing ring

10 mm

Sealing washer thickness

1.5 mm

Seal material

Nitrile rubber [NBR]

Series

L
