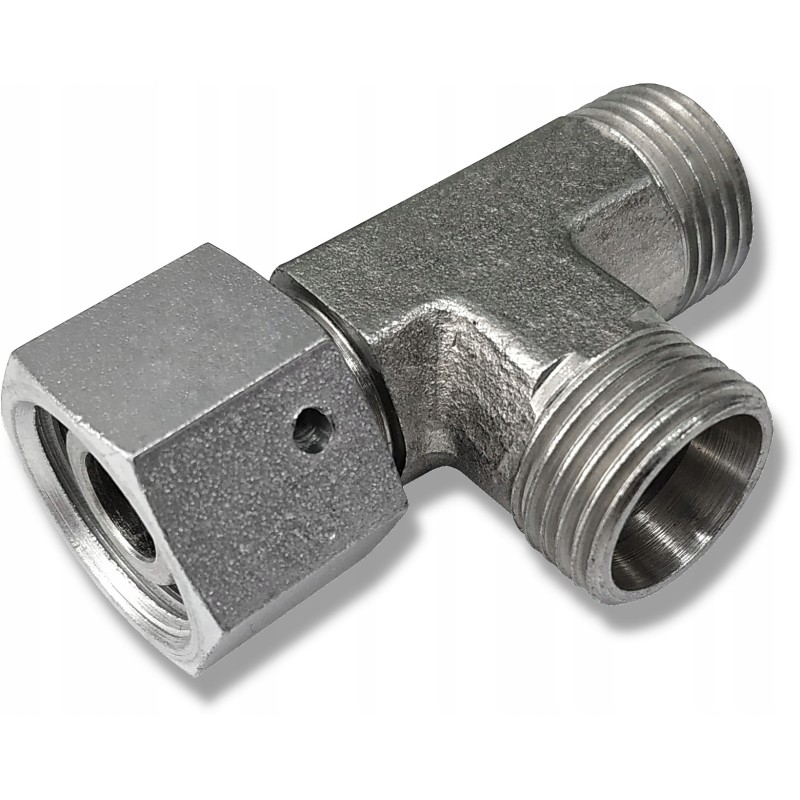

Hydraulic tee connector type bba 22 22 22

BBA hydraulic connector - tee M22x1.5 - M22x1.5 - M22x1.5 15LKOD SKRAW MET: [2985] Manufacturer: SM-G (SKRAW MET GROUP) Tee connector in a standardized light version with self-sealing cones when tightened.

There is an ED seal on the connection side, which fully seals the system.

Due to the lack of a rubber ED seal and no space for a seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. This is done using connections that can be purchased at our other auctions.

Application: Used to connect the main components in the hydraulic system (e.g. pump, actuator or distributor) with hydraulic lines.

It is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry, construction and industry in general.

Technical specifications: Clamping cone angle: 24° ( typical for the Polish standard)

Nominal diameter of the passage: 12 mm

M1 thread: external metric M22x1.5

M2 thread: external metric M22x1.5

M3 thread: internal metric M22x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil< p>

Connector version: light

Material: weldable steel, galvanized, corrosion-resistant
