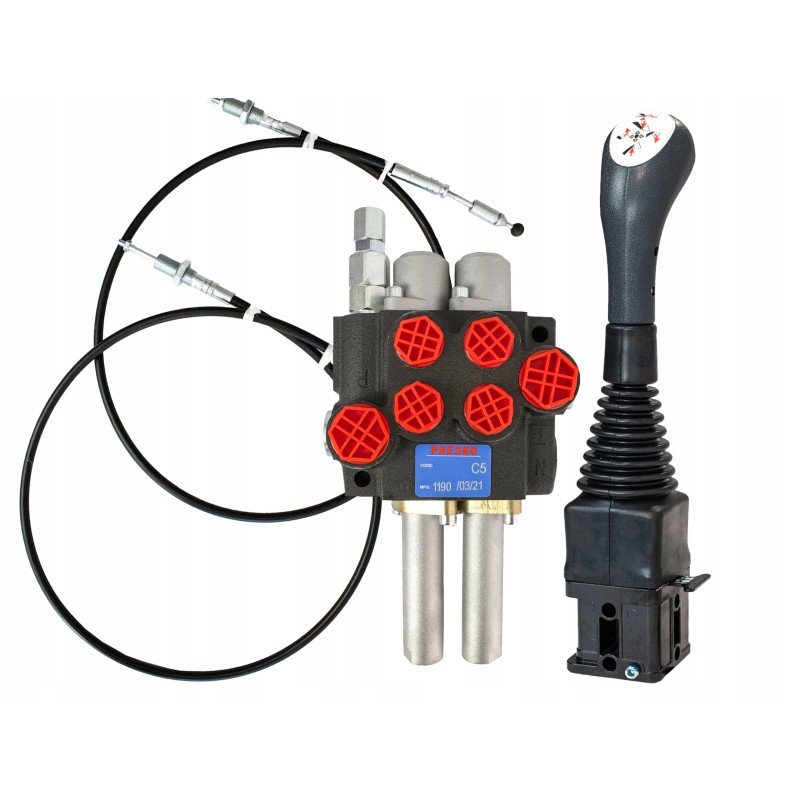

2 sec 80l distributor with joystick and 2m lines

2-SECTION HYDRAULIC DIVIDER 40l WITH JOYSTICK AND CABLES (2x2m) - SET Durable hydraulic distributor (40l) by PRESKO - set with cables (2x2m) and joystick.

The distributor is successfully used in agriculture, horticulture and construction and forestry.

It is used in many machines and vehicles with a hydraulic system. It allows you to connect a hydraulic system located outside the cabin with a joystick located in the cabin, making work comfortable and safe.

The durable and proven design of the set guarantees failure-free operation of the system for a long time.

Dividers very often used in TURACH and:

Tractors

HDS Loaders

Sweepers

Excavators

Cyclops

Forklifts

Sprayers

Balers

Agricultural machines and many others

Technical specification

Number of sections: 2

Safety valve setting: 180 bar

Maximum pressure: 250 bar

Maximum flow: 80 l/min

Section spacing: 38 mm

Weight: 7.9 kg

Typical application: power hydraulics

Connection:

Serial connection (1) 'N' : BSP 3/4 internal thread

Pump power supply (2) 'P' : BSP 3/4 internal thread

Return to the tank (3) 'T': internal thread BSP 3/4''

Outlet to sections (4): internal thread BSP 1/2''

Safety valve: (5)

THE SET INCLUDES: Durable Presko hydraulic distributor: 2 sections

Flow 80l

Maximum pressure 250bar

Setting safety valve 180bar

Supply 3/4''

Return 3/4''

Outlet to sections 1/2''

- Two cables: 2 x 2m

durable protective armor

strong construction

They are used to connect the distributor with a joystick with a ball system - Solid Joystick by PRESKOJoystick with one button, adapted to control ball-ended ropes

Durable construction made of high-quality materials

Enables precise control of devices such as a spoon, grapple or crocodile.

Perfect for TOURS, CYCLOPES, FORKLIFTS AND LOADERS

The safety mechanism used blocks the movement of the joystick head

Cable opening - diameter 14mm

The joystick can be used additionally with solenoid valve

WHAT MAKES OUR PRODUCT DIFFERENT?

It is characterized by many positive properties, including:

• high operating pressure limit up to 250 bar,

• maximum flow of 80 l/min,

• optimal section spacing of 38 mm,

• low dead weight of 7.9 kg.

The product allows you to easily control the oil flow in the system and can be combined into larger systems through pressure sleeves. It is used in many power hydraulics solutions.
