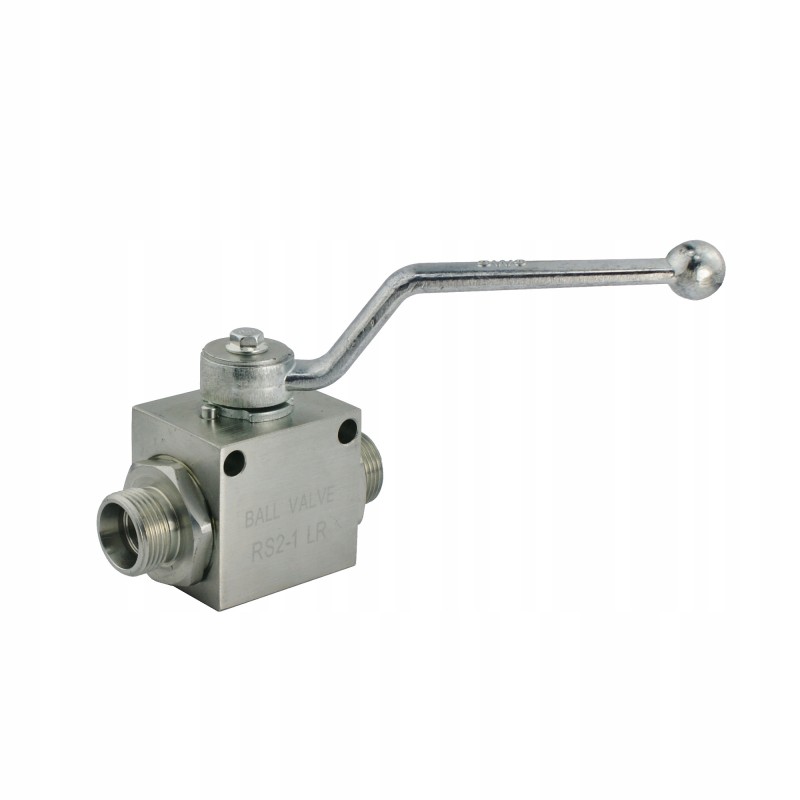

Hydraulic manual ball valve 2 2 m16 20l

2-WAY HYDRAULIC BALL VALVE, TYPE 2/2, THREADS M16x1.5 Production:

Original product of the Hydrolider brand, symbol: 1.35.20.016

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Working principle:

The 'close/open' valve is used to block the oil flow in a single hydraulic line. The valve can be closed and opened even at high pressure.

Connection:

Connect A and P to the supply line where there is a need to open and close the flow.

Technical data:

Maximum flow: 20 l/min

Number of hydraulic holes in the body: 2

External threads in the body: M16x1.5

Body material: galvanized steel

Permissible maximum pressure: 500 bar

Weight: 0.510 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil

Hydraulic diagram of a 2/2 ball valve (photo):
