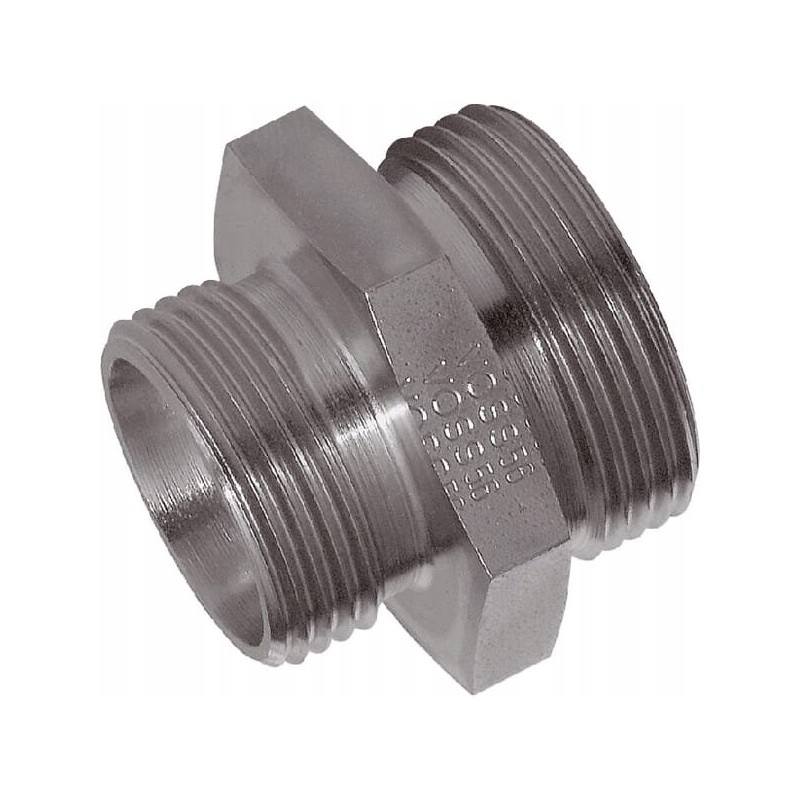

Straight reducing connector m22x1 5 15l m18x1 5 12l

Straight reducing connector M22x1.5 15L - M18x1.5 12L Parameters

Part number: GS1512L

Unit: piece

Manufacturer: Voss

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/ female: Male

Connector no. 1 diameter: 15 mm

Connector no. 1 thread diameter: M22

Inner diameter: 10 mm

Max working pressure: 400 BAR

Thread pitch of connector no. 1: 1.5 mm

Series: L

Wrench size for connector no. 1 [S1 ]: 24 mm

Connector type no. 2: Cutting ring

Connector type no. 2 - male/female: Male

Connection diameter no. 2: 12 mm< p>

Connector No. 2 thread diameter: M18

Connector No. 2 thread pitch: 1.5 mm

Connector No. 2 thread type: Metric

Wrench size for connector no. 2 [S2]: 22 mm

DIN standard: 2401

Length: 15 mm

Total length: 44.5 mm< p>

L1: 15 mm

Specifications

- For direct connection to metric hose nut or pre-assembled connector

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version

Pipe diameter

- 15 mm

- 12 mm
