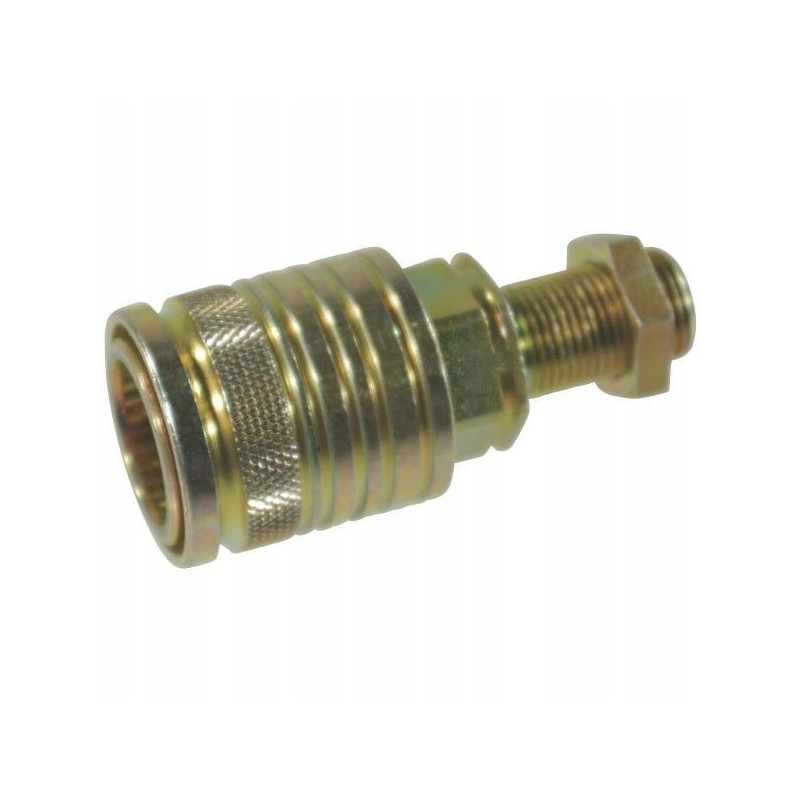

Skpf12n18 quick connector panel iso 12 5 m18x1 5

Quick connector panel ISO 12.5 M18 x 1.5 - socket INDEX: SKPF12N18

Material: Steel

Features: - Standard agricultural connector - Push & Pull principle - Tear-off function - With double-sided shut-off - Axial actuation of the locking sleeve in both directions (double-sided action)

Shape: Straight - 2 sides of connection

Application: - Universal use - Machines agricultural - Municipal technology - Mineral oil-based fluids

Outer diameter: 38 mm

ISO standard: 7241-1-A

Connection diameter: 20.6 mm

Surface treatment: White passivated

Total length: 85 mm

Seal material: Nitrile rubber [ NBR]

Teflon (PTFE)

Working pressure: 250BAR

Connector type no. 2 - male/female: Male

Possibility of connecting under pressure: No

Working temperature max: 100°C

Working temperature min: -30°C

Connection diameter No. 2: 12mm

Connector No. 2 thread pitch: 1.5 mm

Connector No. 2 type: Thread

Connection No. 2 thread diameter: M18

Size (code): BG 3

Connection No. 2 thread type: Metric

Connector No. 1 type : Quick connector

Connector type no. 1 - male/female: Female
