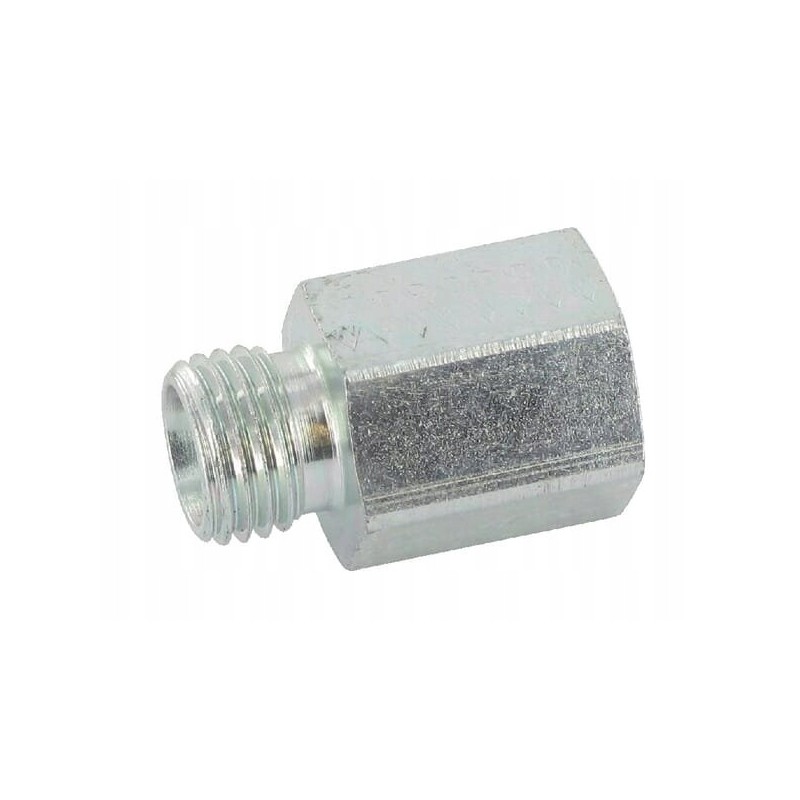

gas8lr1 4 bsp connector

GAS8LR1/4 BSP connector Parameters

Part number: GAS8LR14

Unit: Piece

Manufacturer: Voss

Properties: - High resistance to corrosion

Shape: Straight - 2 sides connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 8 mm

Connector no. 1 length: 17 mm

Connector no. 1 thread diameter: M14

Connector no. 1 thread pitch: 1.50 mm

Connector Thread Type: BSPP

Connector #1 Wrench Size: 19.0 mm

Connector #2 Type: Thread

Type connector no. 2 - male/female: Female

Thread diameter of connector no. 2: 1/4 inch

Number of turns per inch of thread of connector no. 2: 19

Connection No. 2 thread type: BSP

Wrench size for connector No. 2: 17.0 mm

Pipe diameter: 8 mm

Inner diameter: 6 mm

Length: 31 mm

Max working pressure: 315 BAR

Series: L

Specifications

- For direct connection to metric hose nut or pre-assembled connector

Application

- Hydraulic hose

- Hydraulic lines

Benefits

- Low risk of leakage

Dimension from the axis of the joint to the end of the next joint

39 mm

Dimension from the axis of joint no. 2 to the end of the next joint

24 mm

Surface treatment

- Zinc

- Nickel-plated
