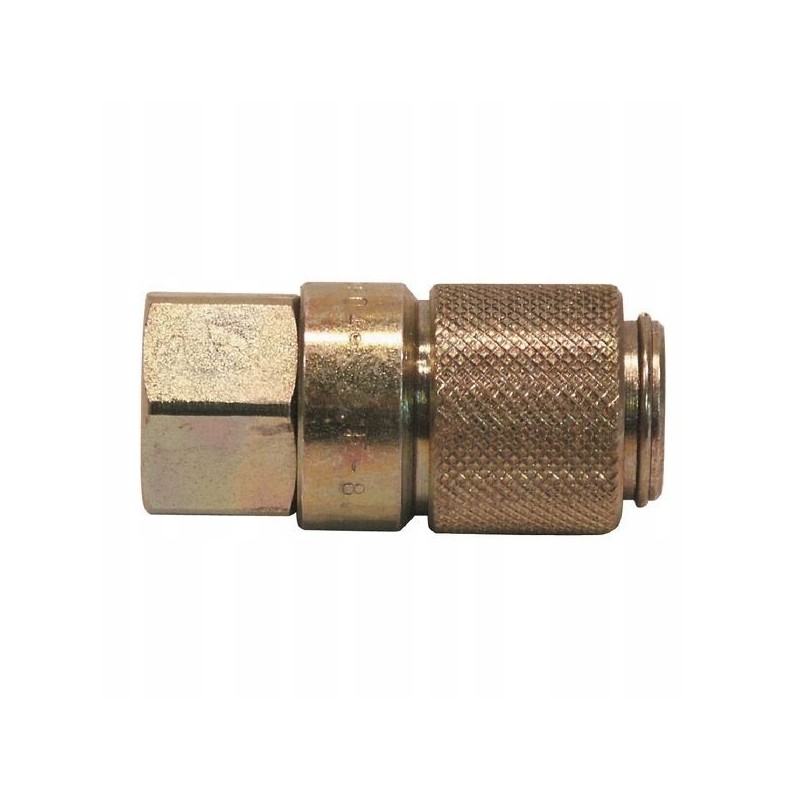

Df0418nptf diagnostic quick connector df 1 4 internal

Diagnostic quick connector DF socket 1/4 internal thread 1/8 NPTF INDEX: DF0418NPTF

Material: Steel

Technical information: - Diagnostic connector with flat seal for measuring point systems - Due to the flat seal, during disconnection, the oil between the two components is forced into the system, preventing air from entering

Benefits: - Connectors with flat seal do not leak during connecting and disconnecting - no air enters when connecting

Valve type: Flat

Shape: Straight - 2 sides of the connection

Size: 6.3 mm

Outer diameter: 24 mm

ISO standard: 16028

Series: DF

Connector thread diameter: 1/8 inch

Connection diameter: 24mm

Surface treatment: Chrome plated

Connector thread type: NPTF

Total length: 42mm

Seal material: Nitrile rubber [NBR]

Weight: 100.6g

Working pressure: 420BAR

Connector type no. 2 - male/female : Female

Ability to connect under pressure: No

Max operating temperature: 125°C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press to connect

ANSI standard: B1.20.3

Disconnection method: Sleeve offset

Connector type 2: Thread

Connector 2 thread diameter: 1/8 inch

Connector 2 thread type: NPTF

Number of turns per inch of connector 2 thread: 27

Connector type 1: Quick connector

Type connectors no. 1 - male/female: Female

connector no. 1 key size: 21mm
