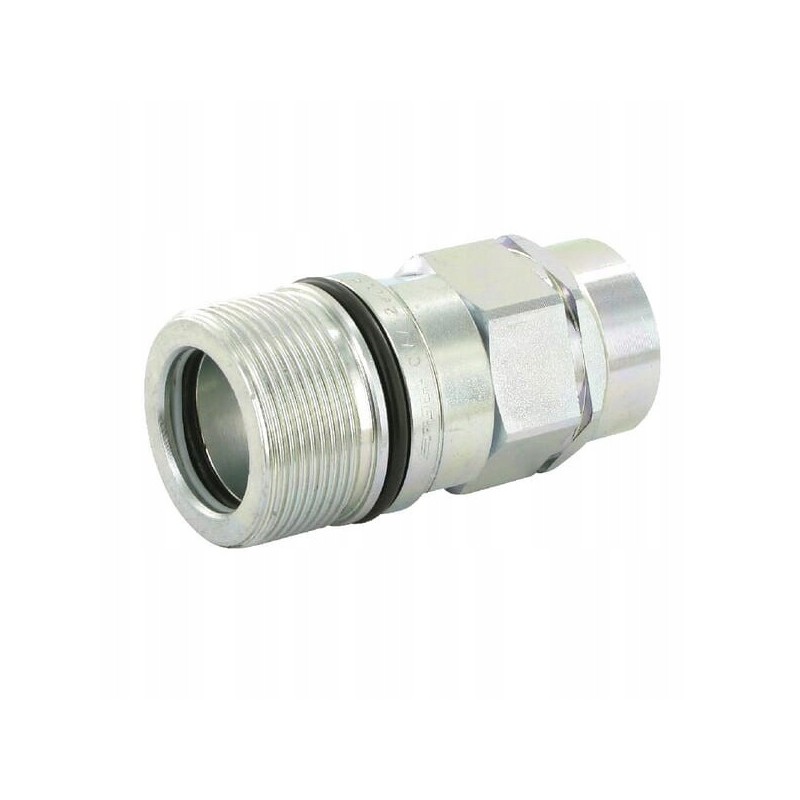

Cvv0838gasfv quick connector

Quick connector INDEX: CVV0838GASFV

Length: 2.24 inch

Material: Steel

Technical information: - Connector must be screwed on until tight

Specifications: - Heavy Duty version - Viton seals

Benefits: - Durable even under heavy load - Suitable for high operating temperatures

Features: - With intended for high dynamic loads - With a ball valve - High availability of equivalents from other manufacturers on the European market

Valve type: Mushroom

Application: - Universal use - Construction machinery - Hydraulic hammers - Agricultural machinery - Mineral oil-based fluids

Size: 12.5 mm

Outside diameter: 1.42inch

ISO standard: 14541

Connection diameter: 36mm

Surface treatment: Chrome plated

Seal material: FKM

Weight: 221.9g

Working pressure: 300BAR

Connector type no. 2 - male/female: Female

Possibility of connection under pressure: Yes

Maximum operating temperature: 200°C

Min. operating temperature: -20°C

Quick connector lock type: Thread

Connection method: Screwed

Connection diameter no. Wrench size for connector no. 2: 27mm

Length of connector no. 2: 57 mm

Disconnection method: Screwed

Thread diameter of connector no. 2: M30

Contents in the sales unit: 15 pcs

Thread type of connector no. 2: BSPP

Flow at pressure 2 bar : 65l/min

OE reference number: CVV08 38 GAS FV

Connector type no. 1 - male/female: Female

Connector no. 1 key size: 27mm
