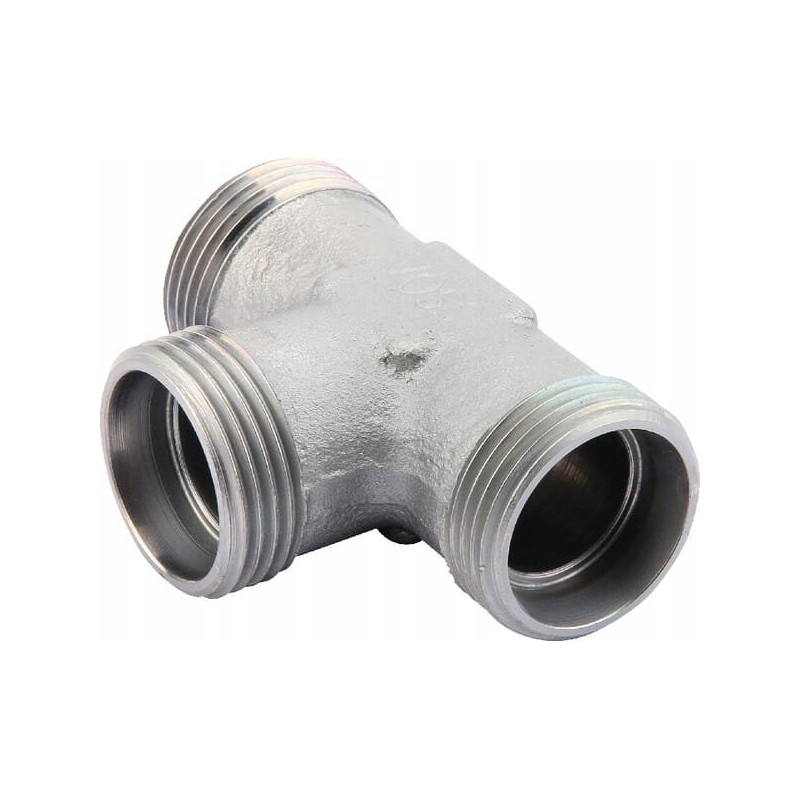

Tee connector M20x1.5 12S Parameters

Part number: TS12S

Unit: piece

Manufacturer: Voss

Properties: - High corrosion resistance

Shape: Tee (T) - 3 connections

Connector type: Thread

Connector type - male/female: Male

Connection diameter: 12 mm

Connector Thread Diameter: M20

Connector No. 1 Thread Pitch: 1.5mm

Connector Thread Type: Metric

Connector Wrench Size: 24mm

Connector No. 2 Type: Thread

Connector No. 2 Male/Female Type: Male

Connector No. 2 Diameter: 12mm

Connector No. 2 Length: 21.5 mm

Connector No. 2 Thread Diameter: M20

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2: 24 mm

Connector No. 3 Type: Thread

Connector No. 3 Type - Male/Female: Male

Connector No. 3 Diameter: 12 mm

Connector No. 3 Thread Diameter: M20

Connector No. 3 Thread Pitch: 1.5 mm

Thread type of connector no. 3: Metric

Pipe diameter: 12 mm

Internal diameter: 8 mm

Total length: 58 mm

Body height: 22 mm

Max. working pressure: 630 BAR

Series: S

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version Dimension from the axis of the joint to the end of the next joint - 21.5 mm

- 29 mm

DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
