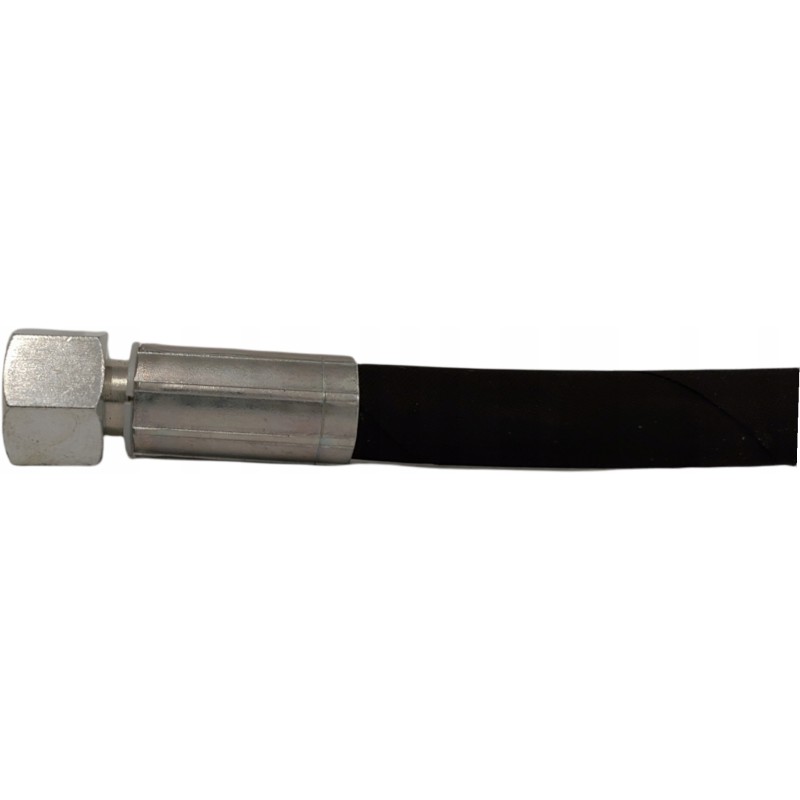

Hydraulic hose pipe bk dn12 m22 d 500 275bar

Hydraulic hose BK 12/2 M22x1.5, 2-braid (2SN), 275 Bar, L-500 mm Flexible hydraulic hoses, next to rigid seamless pipes, are used in every power hydraulics system for fluid transfer. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose is made on the basis of a hydraulic hose that meets the EN 853 2SN standards while offering an attractive price. It is an ideal solution for hydraulic systems with an operating pressure not exceeding 275 Bar.

Hose specifications:

internal diameter: 12.5 mm, 1/2', dash: -08

external diameter: 21.2 mm

internal layer: synthetic rubber

reinforcement: 2 steel wire braids

outer layer: synthetic rubber

working pressure: 275 Bar

bursting pressure: 1100 Bar

bending radius: 180 mm

temperature range: -40°C +100°C

standard: EN 853 2SN

Cable with a CEL straight metric tip with external thread M22x1.5 15L (GZ) on one side and an elbow tip with internal thread M22x1.5 15L (nut) on the other side

Cable specification:

length L - 500 mm

tip 1 : CEL M22x1.5 15L

end 2: DKOL-90 M22x1.5 15L

We are able to produce a hose in any required size!

All our hydraulic lines are cleaned at the appropriate stage of production, so the user can be sure of receiving a product ready for installation and the certainty of long operation! To be able to determine the flow value of a given hose dimension, you must use the appropriate table (see below).

The data is selected depending on the type of pipe:

pressure (supply) line

suction or return line

To determine the appropriate diameter hydraulic hose, you need a ruler, one end of which is connected to the flow value (left ruler), the other to the flow velocity value (right ruler), depending on the place where the hose is used. Flow velocity lines have ranges of values that depend on the individual characteristics of the system.

To determine the best parameters, you need to select the average value from a given range, rounding the cable dimension to the full size above the indication.

When designing and selecting cables for a given system, you also need to pay attention to:

the twist angle of the ends, this is used in the case of the following types of cables: elbow : elbow, eyelet: eyelet, elbow-eyelet

selecting the appropriate type of fitting depending on the location and working position of the hose

selecting the bending radius of the hose

avoiding twisting the hose during installation, which may result in its premature wear

appropriate protection of the hose against premature wear.
