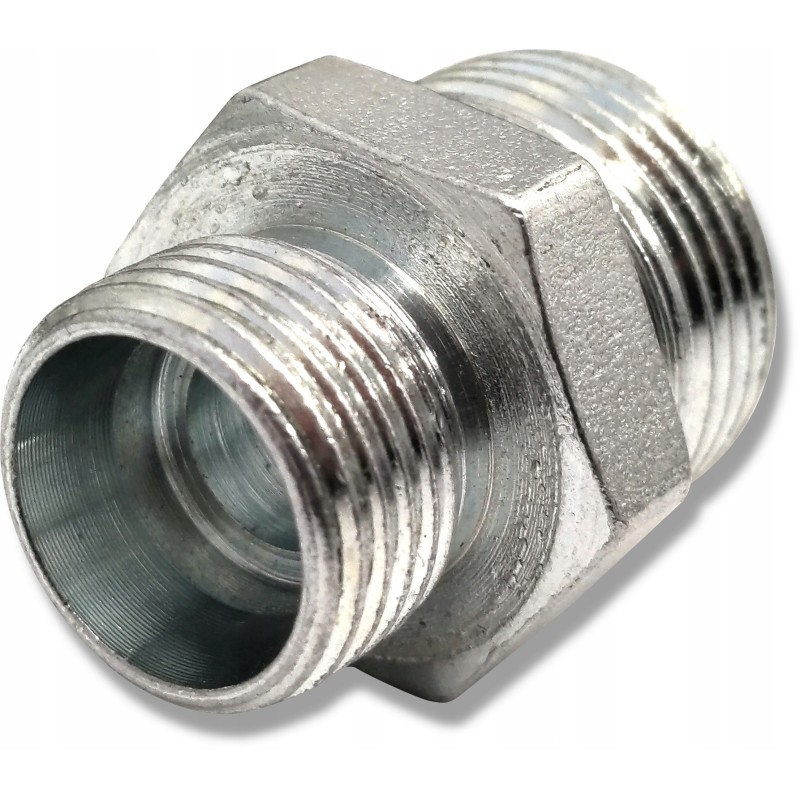

STRAIGHT HYDRAULIC REDUCTION, NIPEL G1/4' - G1/2' Application: Hydraulic reduction is perfect for hydraulically powered machines and devices.
It can be used in agriculture, horticulture, forestry and construction.
It is used to connect the main components in the hydraulic system with hydraulic lines.
It is responsible for connecting the hydraulic line or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.
Technical data:
Clamping cone angle: 24° (typical for the Polish standard)
Nominal passage diameter: 12mm
G1 thread on the cable side: external metric 1/4'
G2 thread on the cable side: external metric 1/2'
Connection version: light
Nominal pressure: 180bar
Maximum pressure: 230bar
Liquid type: hydraulic oil
[1464]
Material:< p>
weldable steel, galvanized, corrosion-resistant
