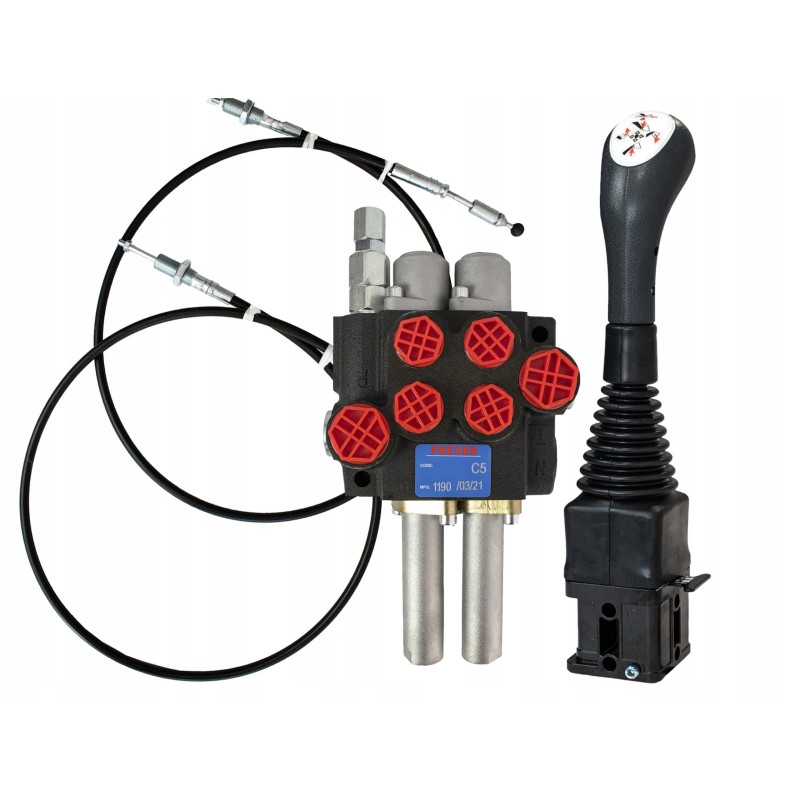

80l 2-section distributor for round set

2-SECTION HYDRAULIC DIVIDER 40l WITH JOYSTICK AND CABLES (2x1.5m) - SET Durable hydraulic distributor (40l) by PRESKO - set with cables (2x1.50m) and joystick.

The distributor is successfully used in agriculture , horticulture, construction and forestry.

It is used in many machines and vehicles with a hydraulic system. It allows you to connect a hydraulic system located outside the cabin with a joystick located in the cabin, making work comfortable and safe.

The durable and proven design of the set guarantees failure-free operation of the system for a long time.

Dividers very often used in TURACH and:

- Tractors

- HDS Loaders

- Sweepers

- Excavators

- Cyclops

- Forklifts

- Sprayers

- Balers

- Agricultural machines and many others

Technical specifications

Number of sections: 2

Safety valve setting: 180 bar

Maximum pressure: 250 bar

Maximum flow: 80 l/min

Section spacing: 35 mm

Weight: 7.9 kg

Typical application: power hydraulics

Connection:

Supply from the pump (P1, P2): BSP 3/4'' internal thread

Return to the tank (T1, T2): BSP 3/4 internal thread ''

Output into sections (A1, A2, B1, B2): BSP 1/2 internal thread''

Series connection (N): BSP 3/4 internal thread

Safety valve: Z

THE SET INCLUDES: - Durable Presko hydraulic distributor: 2 sections

Flow 80l

Maximum pressure 250bar

Safety valve setting 180bar

Supply 3/4''

Return 3/4''

Outlet to sections 1/ 2''

- Two cables: 2 x 1.5m

durable protective armor

strong construction

They are used to connect the distributor with joystick with a ball system - Solid Joystick by PRESKOJoystick with one button, adapted to control lines with balls

Durable construction made of high-quality materials

Allows precise control of devices such as a spoon, gripper or crocodile.

Perfect for TURNS, CYCLOPES, FORKLIFTS AND LOADERS

Used safety mechanism blocking the movement of the joystick head

Cable hole - diameter 14mm

The joystick can also work with a solenoid valve

WHAT MAKES OUR PRODUCT DIFFERENT?

It is characterized by many positive properties, including:

• high limit working pressure up to 250 bar,

• maximum flow of 80 l/min,

• optimal section spacing of 38 mm,

• low net weight 7.9 kg.

The product allows easy control of oil flow in the system and can be combined into larger systems through pressure sleeves. It is used in many power hydraulics solutions.
