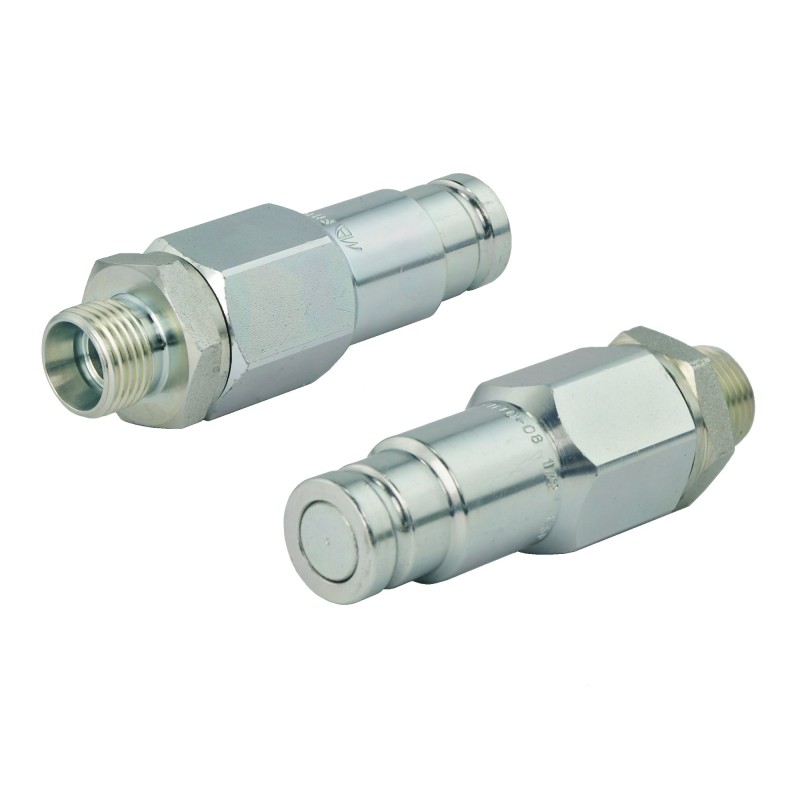

Dry-cut flat quick connector, M18 plug

Hydraulic high -teller dry -cutting is the quality of workmanship and virtually zero oil leakage when connecting and disconnecting quick connectors. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor. They are recommended wherever leakage of oil or other liquids may be dangerous to employees or other equipment.

Helpful data:

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [ mm]: 16.2 - 16.6

Technical data:

Thread on the cable side: metric 18x1.5

Thread type: external

Quick connector type: dry-break flat plug, ISO standard

Weight: 0.25 kg

Liquid type: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Important!!!

Agricola sets have been designed in such a way that they can be easily assembled on your own. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent unassembled.
