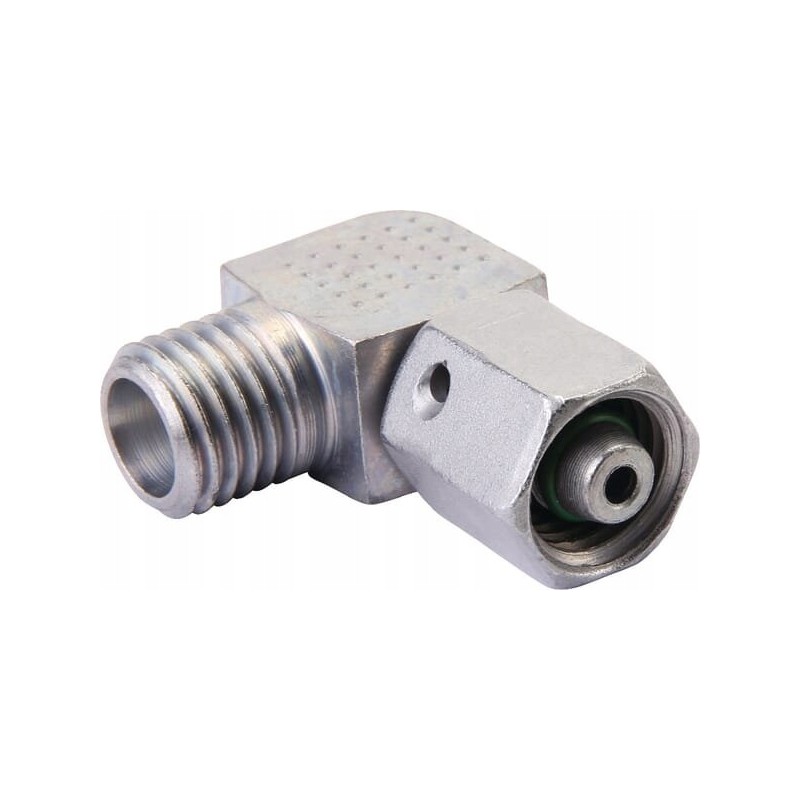

Elbow connector with nut m26x1 5 18l ewsd18l vo

Elbow connector with nut M26x1.5 18L Parameters

Part number: EWSD18L

Unit: piece

Manufacturer: Voss

EAN: 8716106785971

Features: - High corrosion resistance

Shape: Elbow - 2 sides of connection

Connector type: Swivel nut

Connector type - male/female: Female

Connection diameter : 18 mm

Connector Thread Diameter: M26

Connector No. 1 Thread Pitch: 1.5 mm

Connector Thread Type: Metric

Connector Wrench Size: 24 mm

Connector Type No. 2: Cutting Ring

Connector Type No. 2 - Male/ Female: Male

Connector No. 2 Thread Diameter: M26

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2: 32 mm

Pipe Diameter: 18 mm

DIN Standard: 2401

Length: 23.5 mm

Angle: 90 °

Working pressure max.: 400 BAR

Seal material on the pipe side: Viton

Series: L

L2: 40 mm

Installation size 4: 24 mm

Wrench size [S2 ]: 32 mm

Specifications

- Pre-assembled O-ring - For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint 35.5mm

Dimension from the axis of joint no. 2 to the end of the next joint 23.5mm

Internal diameter

- 15 mm

- 13 mm
