Hydraulic hose AK 45 m16 m22 d 2500 330bar

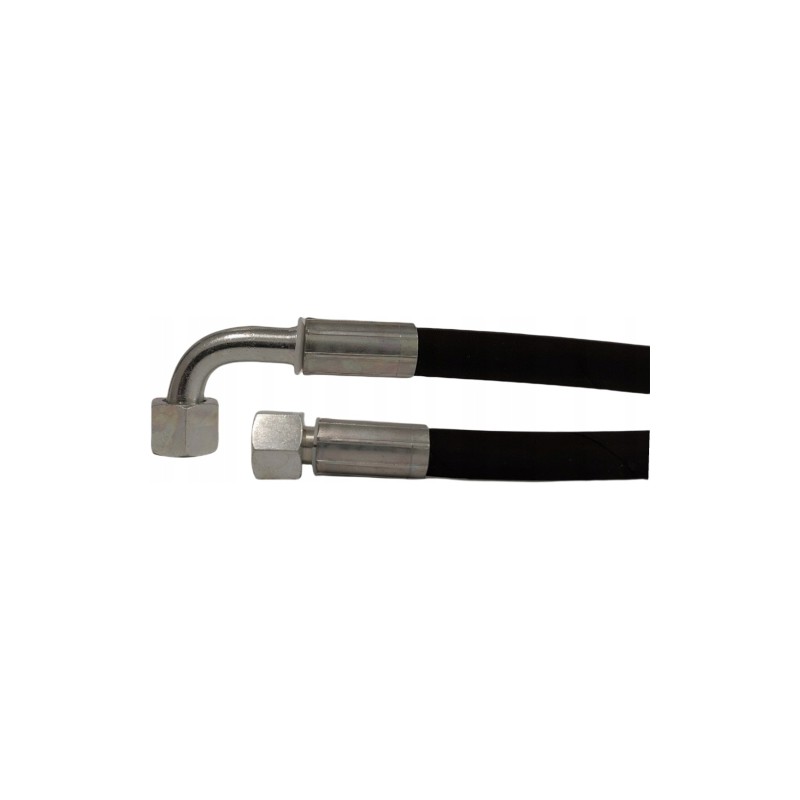

Hydraulic hose with 45° elbow AK 10/2 M16x1.5/M22x1.5, 2-braid (2SN), 330 Bar, L-2500 mm Flexible hydraulic hoses next to rigid seamless pipes are used in every power hydraulics system for fluid transfer. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose is made on the basis of the North-Fighter hydraulic hose and meets the EN 853 2SN standards while offering an attractive price. It is an ideal solution for hydraulic systems with an operating pressure not exceeding 330 Bar.

Hose specifications:

internal diameter: 10 mm, 3/8', dash: -06

external diameter: 18 mm

internal layer: synthetic rubber

reinforcement : 2 steel wire braids

outer layer: synthetic rubber

working pressure: 330 Bar

bursting pressure: 1320 Bar

bending radius: 130 mm

temperature range: -40°C +100°C

standard: EN 853 2SN

Cable having on one side a DKOL straight metric tip with internal thread M16x1.5 10L (nut) and on the other side a DKOL-45° elbow tip with internal thread M22x1.5 15L (nut)

Cable specifications:

length L - 2500 mm

tip 1 : DKOL M16x1.5 10L

end 2: DKOL-45° M22x1.5 15L

We are able to produce a hose in any required size!

All our hydraulic lines are cleaned at the appropriate stage of production, so the user can be sure of receiving the finished product for installation and the certainty of long operation! To be able to determine the flow value of a given hose dimension, you must use the appropriate table (see below).

The data is selected depending on the type of pipe:

pressure (supply) line

suction or return line

To determine the size For the appropriate diameter of the hydraulic hose, you need a ruler, one end of which is applied to the flow value (left ruler), the other to the flow velocity value (right ruler), depending on the place of use of the hose.

Flow velocity lines have ranges of values that depend on individual characteristics system.

To determine the best parameters, you need to select the average value from a given range, rounding the wire size to the full size above the indication.

When designing and selecting wires for a given system, you also need to pay attention to:

twist angle of the ends, this applies to the following types of wires : elbow: elbow, eyelet: eyelet, elbow-eyelet

selecting the appropriate type of fitting depending on the location and working position of the hose

selecting the bending radius of the hose

avoiding twisting the hose during installation, which may cause its premature wear

appropriate protection of the hose against premature wear.

We offer many varieties of hydraulic fittings and hoses. If you have not found the solution you are interested in or are looking for a tailor-made product, you will find it here!
