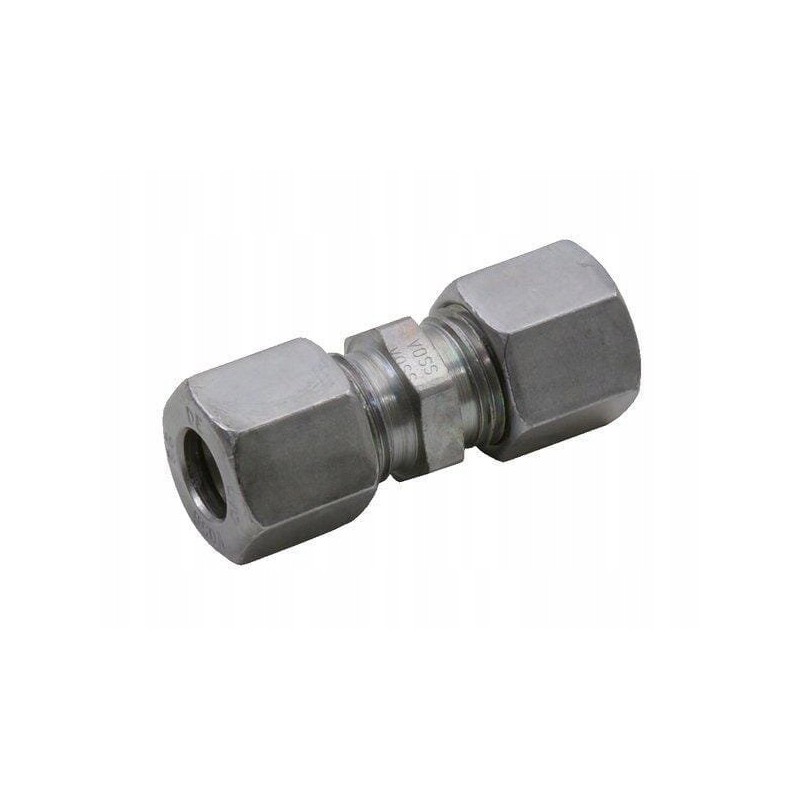

Straight threaded connector 20 s gv20s voss

Straight threaded connector 20 S Parameters

Part number: GV20S

Unit: piece

Manufacturer: Voss

Shape: Straight - 2 sides connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 20 mm

Connector thread diameter: M30

Thread pitch Connector No. 1: 2 mm

Connector Thread Type: Metric

Wrench Size for Connector [S1]: 32 mm

Connector Type No. 2: Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Diameter: 20 mm

Connector No. 2 Thread Diameter: M30

Connector No. 2 Thread Pitch: 2 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2 [S2]: 36 mm

Distance Between Connectors [L1]: 23 mm

Diameter pipes: 20 mm

Total length [L]: 66 mm

Cone angle: 24

Max. working pressure: 420 BAR

Series: S

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimum connection to the cutting ring and perfect operation - High corrosion resistance DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
