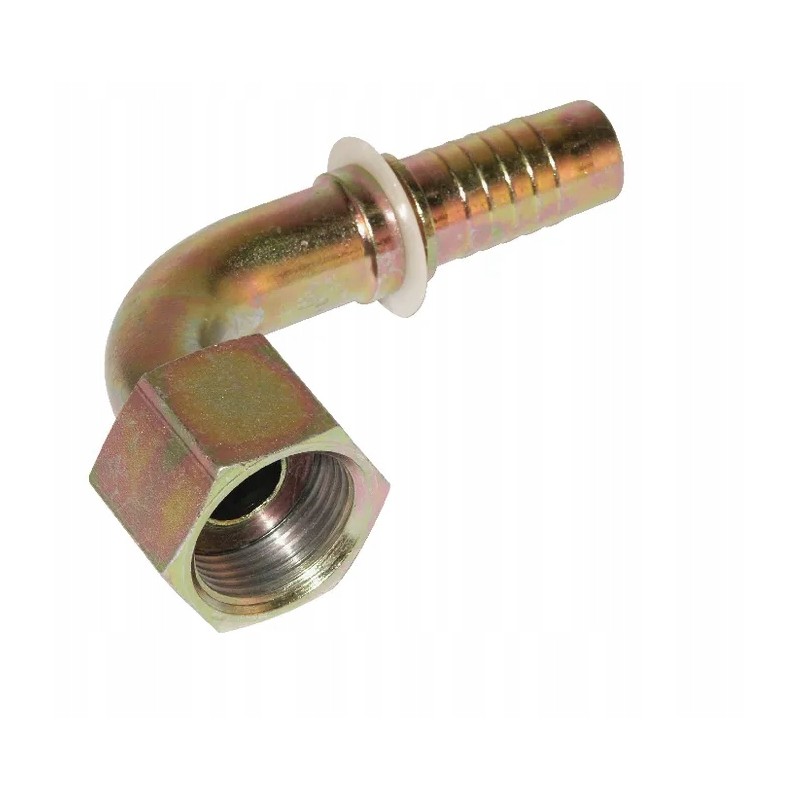

Pav6990s tip dn06 9 16 orfs 90

PAV6990S DN06-9/16 ORFS 90° fitting Advantages

Suitable for installation in small spaces

Product details

Low elbow

O-ring

Benefits

Suitable for installation in hard-to-reach places

Shape

Elbow - 2 sides of the connection

Connector type no. 1

Swivel nut

Connector type no. 1 - male/female

Female

Connector type No. 1 - code

ORFS

Connector thread diameter

9/16 inch

Connector thread type

UNF

Wrench size for connector no. 1

17.0 mm

Type of connector no. 2

Hose connector

Connector No. 2 Type - Male/Female

Male

Connection No. 2 Diameter

1/4 inch

Connection No. 2 Diameter

6 mm

Dimension from the axis of joint no. 2 to the end of the next joint

28.5 mm

Angle

90 °

Material

Steel

Surface treatment

Galvanized

White passivated

OE reference number

H1222493-04040S
