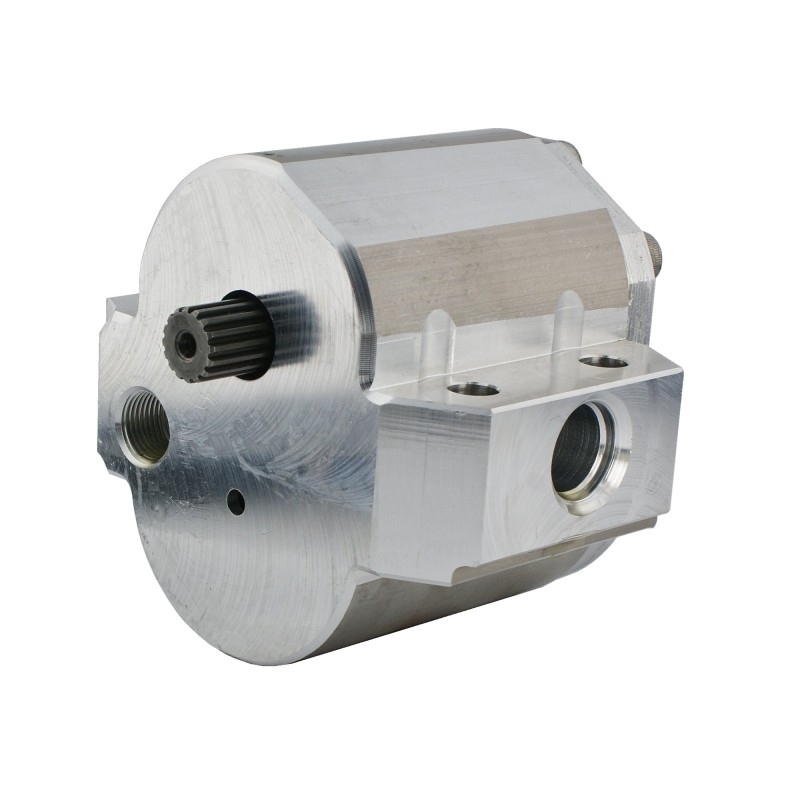

Hydraulic pump C 360 16mpa 25cm3 aluminum hylmet

LIFTING HYDRAULIC PUMP C-360C-360-3P INCREASED FLOW AND CAPACITYProduction:

Original product of the Hylmet Polska brand, symbol: 60/46.546.310/w1/al, 0046/54-631/0, 1.40. 15.062

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The pump is primarily intended for controlling the system hydraulic in Ursus C-360, C-360-3P, C-4010. The pump also fits Zetor 5011 and 7011.

General information:

The pump has enhanced oil flow and can also operate at high pressure. To use the full potential of the pump's power, it is necessary to replace the safety valve with a reinforced 17.5MPa one.

Recommended when the original pump cannot cope, the TUR runs too slowly or there is a problem with the lifting capacity.

Technical data:

Performance: 40 l/min (at 1600 rpm)

Geometric volume: 25 cm3/rev

Direction of rotation: left< p>

Speed range: 800 - 2500 (rpm)

Internal threads: M22x1.5

Body: cast iron

Operating parameters:

Keeping the pump operating at nominal parameters ensures the longest service life. Operation at maximum parameters is permissible, but it shortens the pump's life.

Nominal pressure: 16 MPa

Maximum pressure: 20 MPa
